Frame

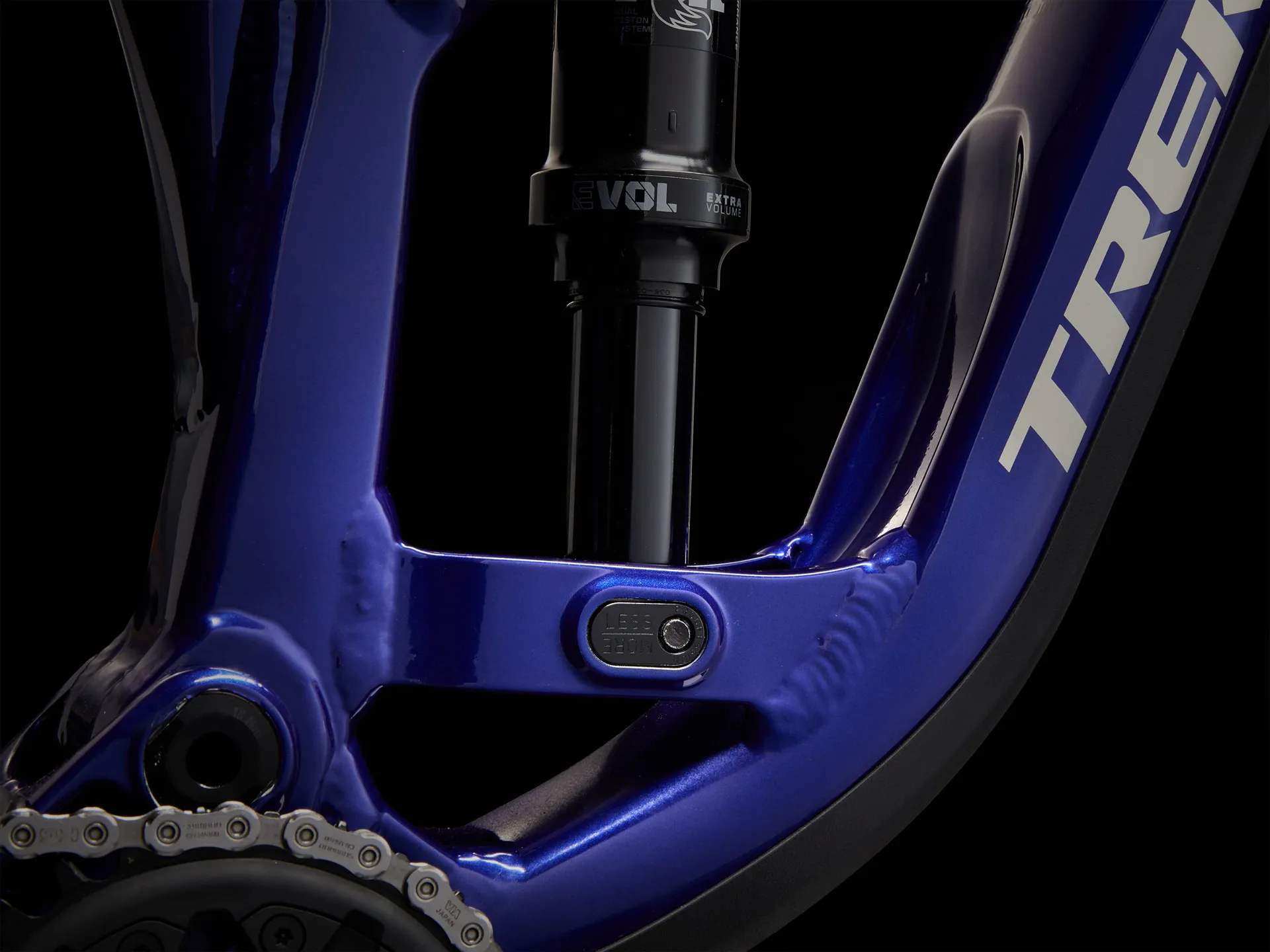

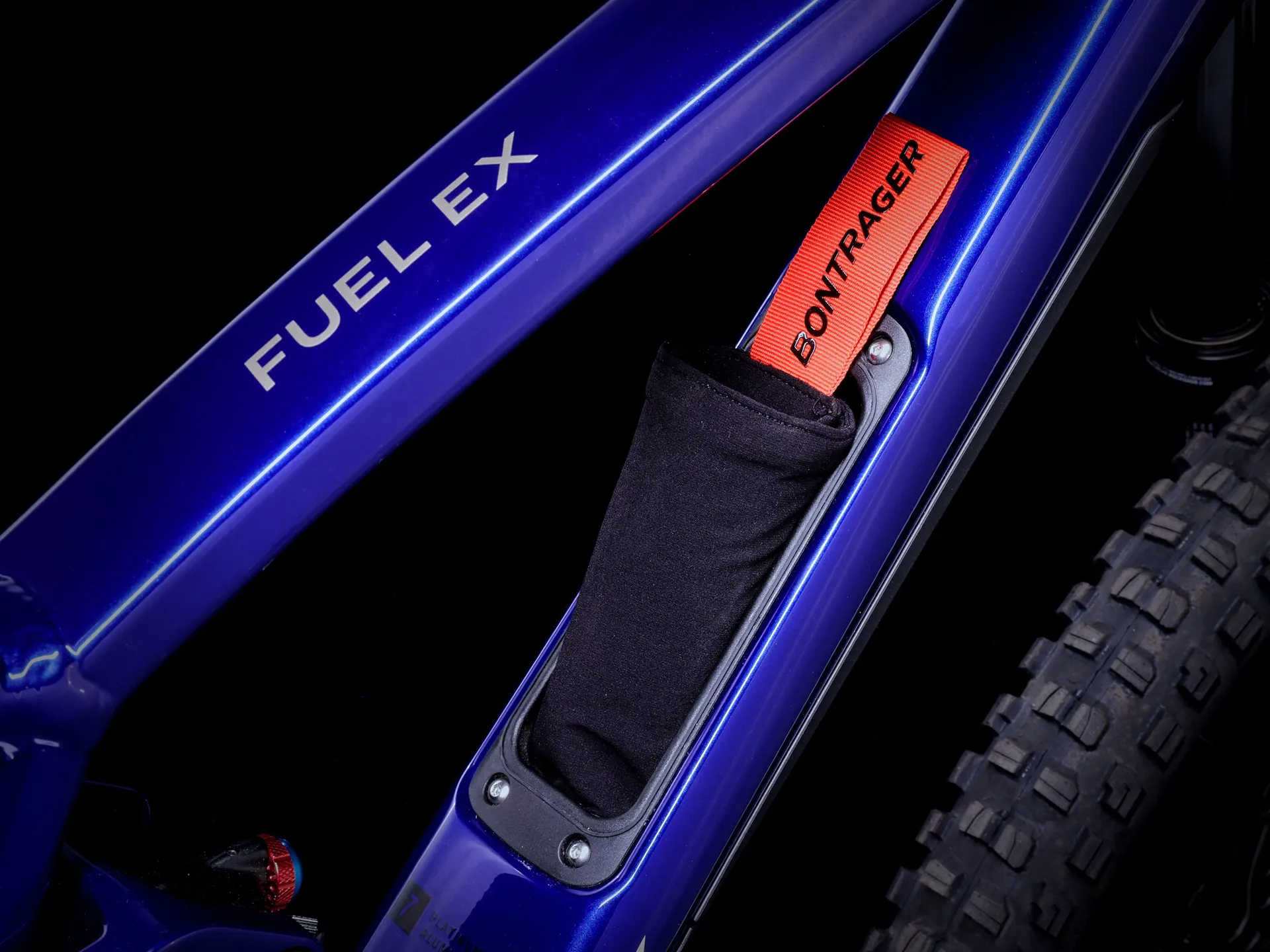

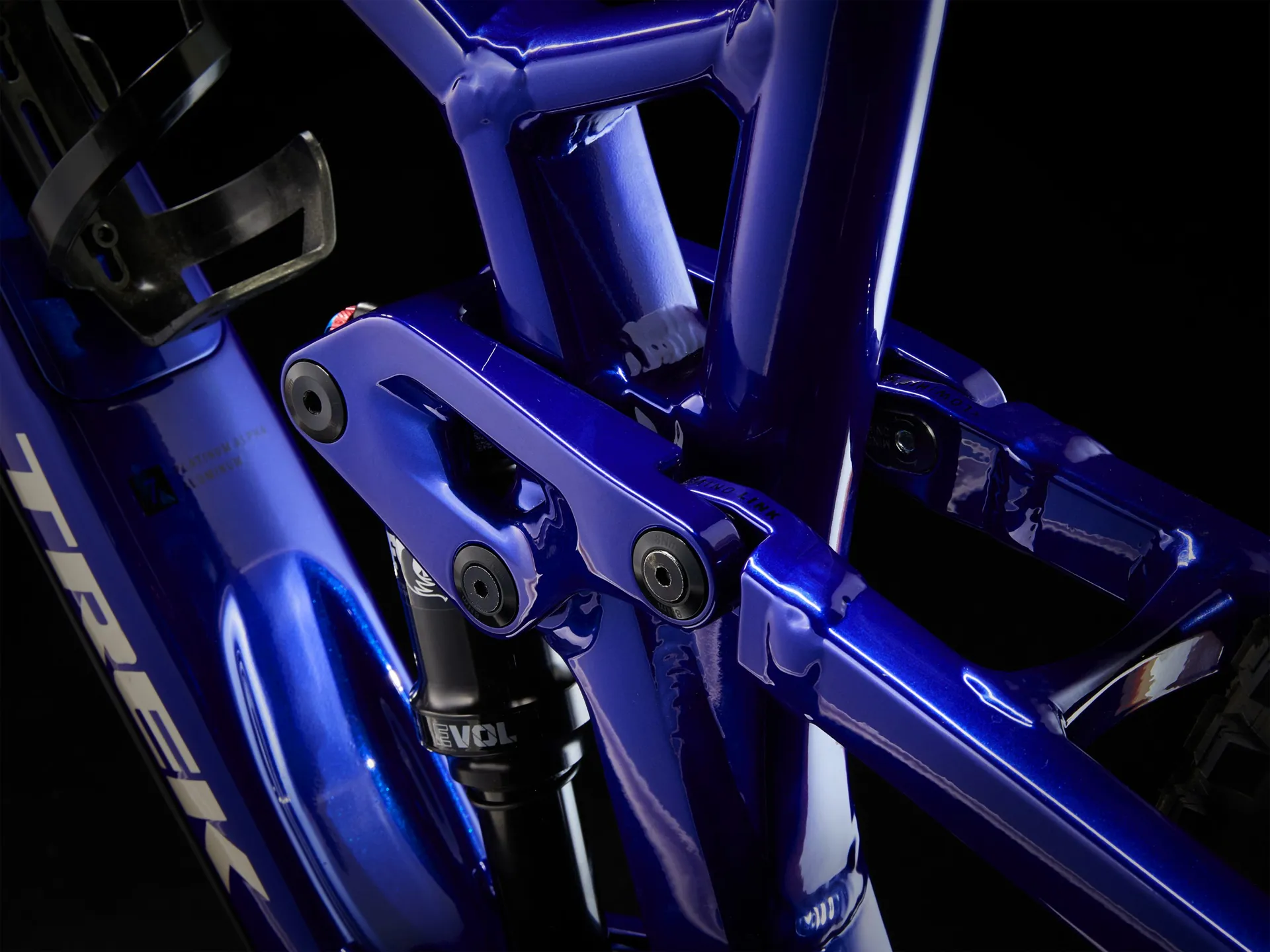

Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
Shock

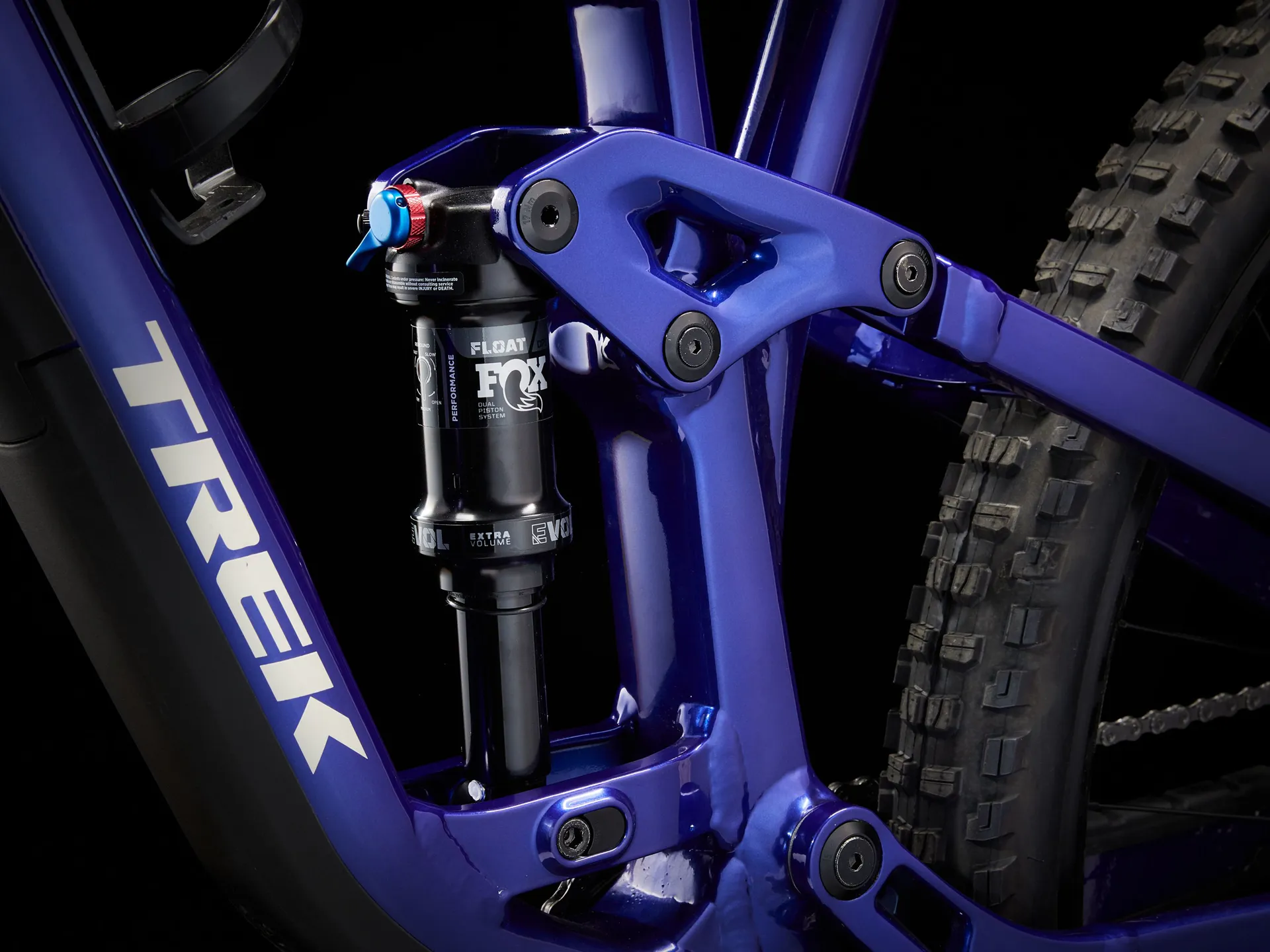

Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185 mm x 55 mm
Max compatible fork travel
160mm
*Wheel front
Size: XS , S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
*Wheel rear
Size: XS , S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5"Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29"
Skewer rear
Bontrager Switch thru-axle, removable lever
*Tyre
Size: XS , S Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50"Size: S , M , ML , L , XL , XXL Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Max tyre size
Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank
Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Max. chainring size
1x: 34T round, 32T oval, min 28T
Saddle
Bontrager Arvada, steel rails, 138 mm width
*Seatpost
Size: XS , S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm lengthSize: M , ML TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm lengthSize: L , XL , XXL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
*Stem
Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm lengthSize: M , ML , L , XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Brake

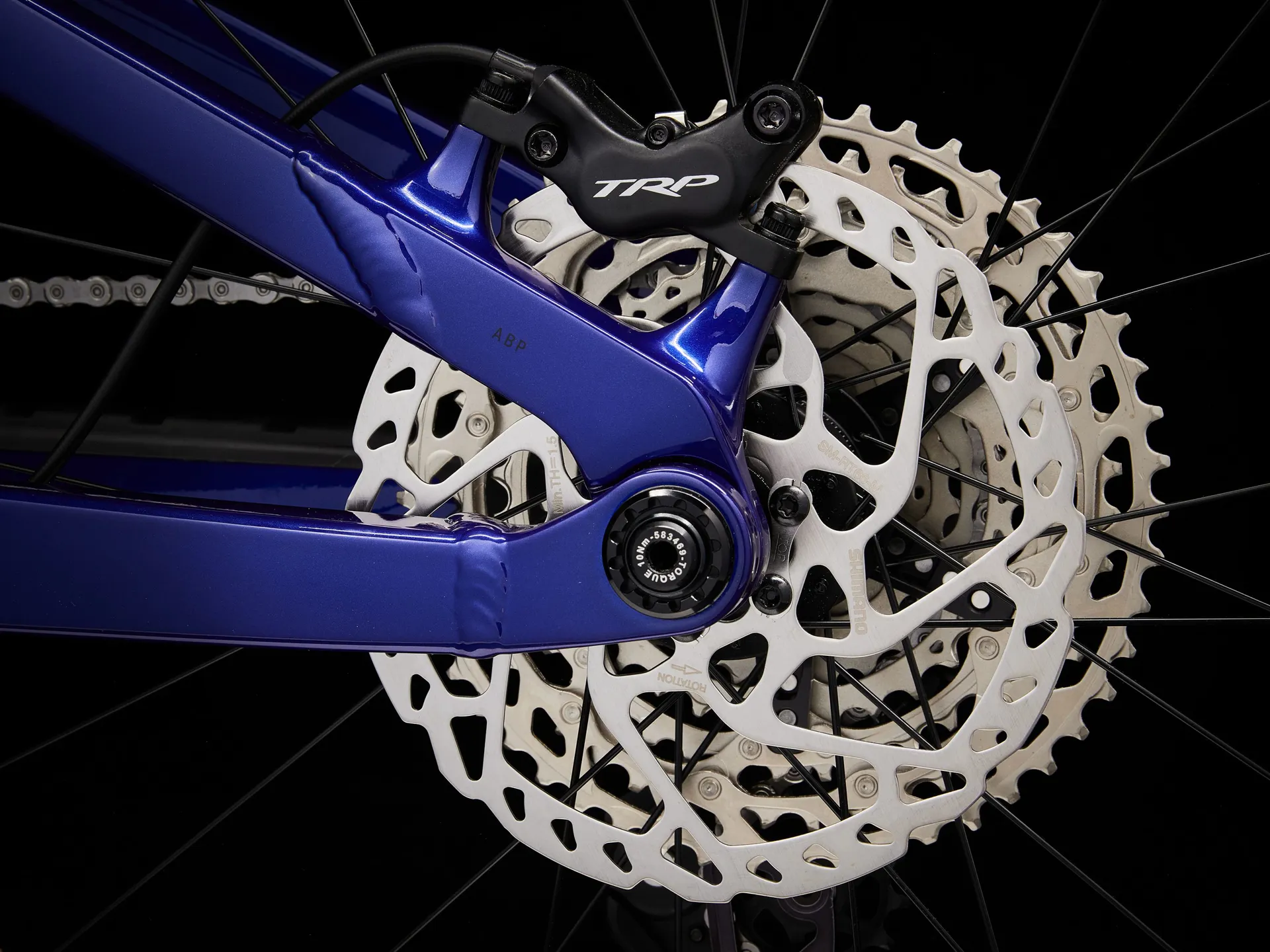

TRP Slate EVO hydraulic disc
*Brake rotor
Size: XS , S , M , ML , L , XL , XXL TRP, 6-bolt, 180 mmSize: XS , S , M , ML , L , XL , XXL TRP, 6-bolt, 203 mm
Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Weight
M – 15.97 kg/35.21 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
