Material

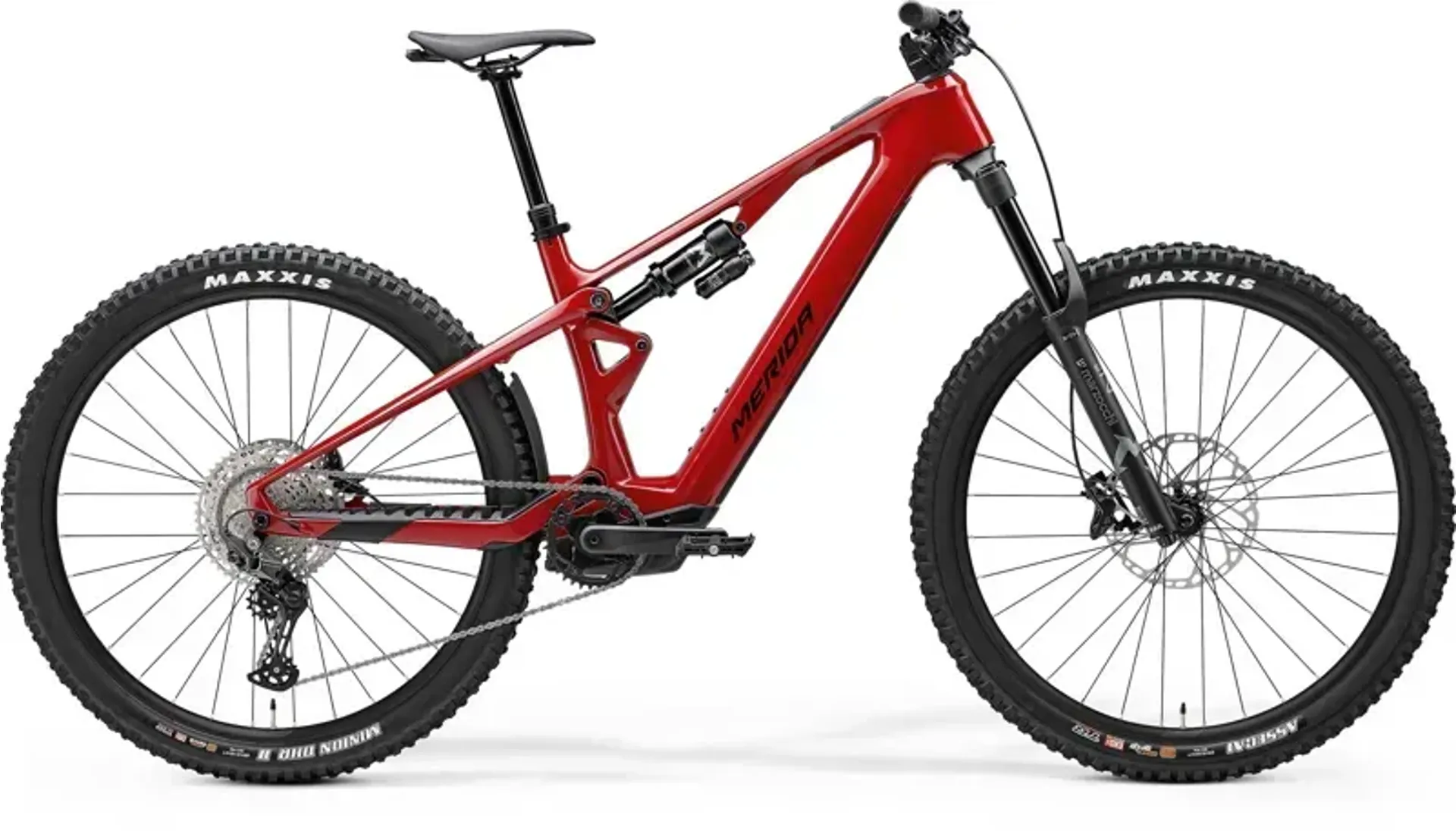

eONE-SIXTY SL CF4
Material: Carbon
160mm suspension travel
29x2,4" max. wheelsize
148x12mm axle standard
Fixed battery
-
Frame size
XShort, Short, Mid, Long, XLong
-
Fork
Marzocchi Z1 eMTB
Air
160mm suspension travel
Tapered
44mm fork offset
29x2.6" max wheelsize
-
Shock
Marzocchi Bomber Air
Platform
-
Brakes
Shimano Deore M6120
4 piston
-
Rotors
Shimano RT64, 220mm / Shimano RT64, 200mm
-
Headset
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
-
Handlebar
MERIDA EXPERT eTR
780mm width
XS,S 20RHB
M,L,XL 30RHB
-
Handlebar stem
MERIDA EXPERT eTR II
Material: Aluminium
35mm diameter
0° stem angle
Supernova mount
40 mm all sizes
-
Grip
MERIDA EXPERT EC
-
Rear derailleur
Shimano Deore
-
Shifters
Shimano SL: MT500-IL / Shimano Deore
-
Seat post
MERIDA COMP TR III
34.9mm diameter
0mm setback
XSHORT: 150mm travel seatpost : SHORT/MID: 170mm travel seatpost : LONG/XLONG: 200mm travel seatpost
-
Seat clamp
MERIDA EXPERT
-
Saddle
MERIDA COMP SL
28% recycled material
V-mount
Incl. MERIDA minitool
-
Pedal
VP VP-532
-
Chain
Shimano Deore M6100
-
Chainwheel
FSA 1x Alloy Spider + Mega Tooth steel chain ring
34 teeth
-
Crankset
FSA CK-220 wide E-Bike Forged Crankset
165mm for all sizes
-
Freewheel
Shimano Deore
10-51 teeth
12 speed
-
Hubs
Shimano TC500
15x100mm width front hub
32 spoke holes
Centerlock
12x148mm width rear hub
32 spoke holes
Centerlock
-
Rims
MERIDA EXPERT TR II
110x15mm width front hub
148x12mm width rear hub
28mm inner width
Material: Aluminium
Tubeless ready (Tubeless tape and valves not included)
Front 29"
Rear 29"
-
Front tyre
Maxxis Assegai
29x2.5 "
Fold
TR EXO+ 3C MaxxGrip
-
Rear tyre
Maxxis Minion DHR II
29x2.4 "
Fold
TR EXO+ 3C MaxxTerra
-
Axles
MERIDA EXPERT TR
Including removeable lever, 6/4mm allen key
-
Spokes material
Black stainless
-
Front light model
CG-119PG-BLACK(1)
-
Rear light model
CG-404RG-BLK
-
Drive unit
Bosch Performance Line SX
-
Battery
Bosch CompactTube 400 Wh
Integrated
-
Display
Bosch Purion 400
-
Weight
Approx. 20.8 kg
Weighed at frame size M
Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues
-
Max weight capacity
140 kg
