The FUEL+ MX 9.9 X0 AXS is Trek's top-tier e-MTB featuring an OCLV Mountain Carbon frame, TQ HPR60 motor, and Fox Factory suspension.
The FUEL+ MX 9.9 X0 AXS is Trek's top-tier e-MTB featuring an OCLV Mountain Carbon frame, TQ HPR60 motor, and Fox Factory suspension.
Trek

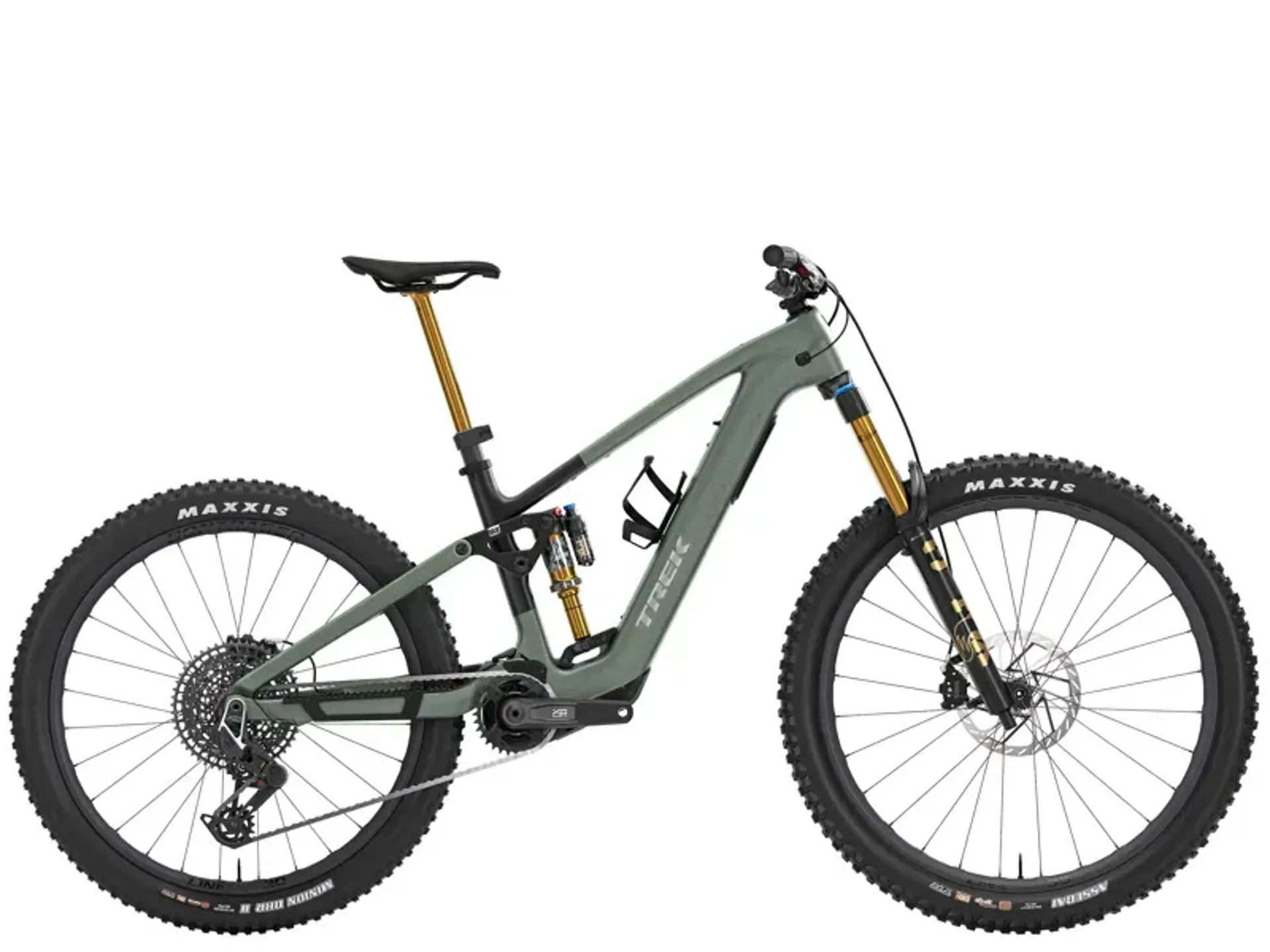

Trek Fuel+ MX 9.9 X0 AXS Gen 2 E-Mountain Bike In Lichen Green/Keswick Green Splatter

£10,300.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Trek Fuel+ MX 9.9 X0 AXS Gen 2 E-Mountain Bike In Lichen Green/Keswick Green Splatter

Season:2026

Brand:Trek

Code:56076GRN

The FUEL+ MX 9.9 X0 AXS is Trek's top-tier chaos-loving e-MTB designed for chasing the wild beyond the beaten track. It features an OCLV Mountain Carbon frame and TQ's HPR60 motor.

This model is specified with a Fox Factory suspension package (150 mm rear, 160 mm front) and MX wheels for getting rowdy on the trail. You get all the best components, including SRAM's wireless X0 AXS transmission, SRAM Mavel Silver 4-piston brakes, a Fox Transfer NEO dropper post, and carbon Bontrager Line Pro 30 wheels.

The FUEL+ is available in three adjustability-packed configurations: EX for do-it-all capability, MX for pop-happy riding, or LX for charging through everything. The new frame design gives you loads of room for range extenders, long dropper posts, bigger shocks, and frame bags.

Features:

  • Adjustable leverage rate: Flip the chip in the lower shock mount for a more progressive leverage rate, offering more bottom-out resistance without sacrificing small-bump sensitivity.
  • Zero Stack Integrated Headset: A ZS standard headset provides options for aftermarket upgrades, including angle adjust or anodised colours.
  • TQ HPR60 Motor: Delivers more power and torque, kicking in at a lower cadence for an earlier boost. A 580 Wh battery provides efficient power for long rides.
  • Active Braking Pivot: Allows engineers to tune how the suspension reacts to acceleration and braking forces independently, providing more confident control when needed most.
Technical Information
  • Frame
    OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
  • Fork
    Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost110, 15 mm Kabolt X axle, 160 mm travel
  • Shock
    Fox Factory Float X, 205 mm x 60 mm
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 27.5"
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Tyre (Front)
    Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' (Applicable for sizes S, M, L, XL, XXL)
  • Tyre (Rear)
    Maxxis Minion DHR II, tubeless ready, 3C, Double Down, MAXXGRIP, 27.5x2.5" (Applicable for sizes S, M, L, XL, XXL)
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size
    Frame: 29x2.50", Fork: See manufacturer
  • Battery
    TQ 580Wh
  • Charger
    TQ 4A charger
  • Shifter
    SRAM AXS pod
  • Rear derailleur
    SRAM X0 Eagle AXS, T-Type
  • Crank
    SRAM X0 Eagle, 160 mm length
  • Chainring
    SRAM T-Type, 32T, alloy
  • Cassette
    SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
  • Chain
    SRAM X0 Eagle, T-Type, 12-speed
  • Max. chainring size
    1x: 34T, min 30T
  • Saddle
    Verse Short Pro, carbon rails, 145 mm width
  • Seatpost (Size S)
    Fox Transfer NEO, 150 mm travel, wireless, 34.9 mm
  • Seatpost (Size M)
    Fox Transfer NEO, 175 mm travel, wireless, 34.9 mm
  • Seatpost (Sizes L, XL, XXL)
    Fox Transfer NEO, 200 mm travel, wireless, 34.9 mm
  • Handlebar
    Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
  • Grips
    Trek Line Elite, lock-on
  • Stem
    Race Face Turbine R, 35 mm, 0 degree, 40 mm length
  • Brake
    SRAM Maven Silver 4-piston hydraulic disc
  • Brake rotor
    SRAM HS2, 6-bolt, 200mm
  • Rotor size
    Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
  • Weight
    M - 19.02 kg / 41.94 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
