The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point.
The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point.
Trek

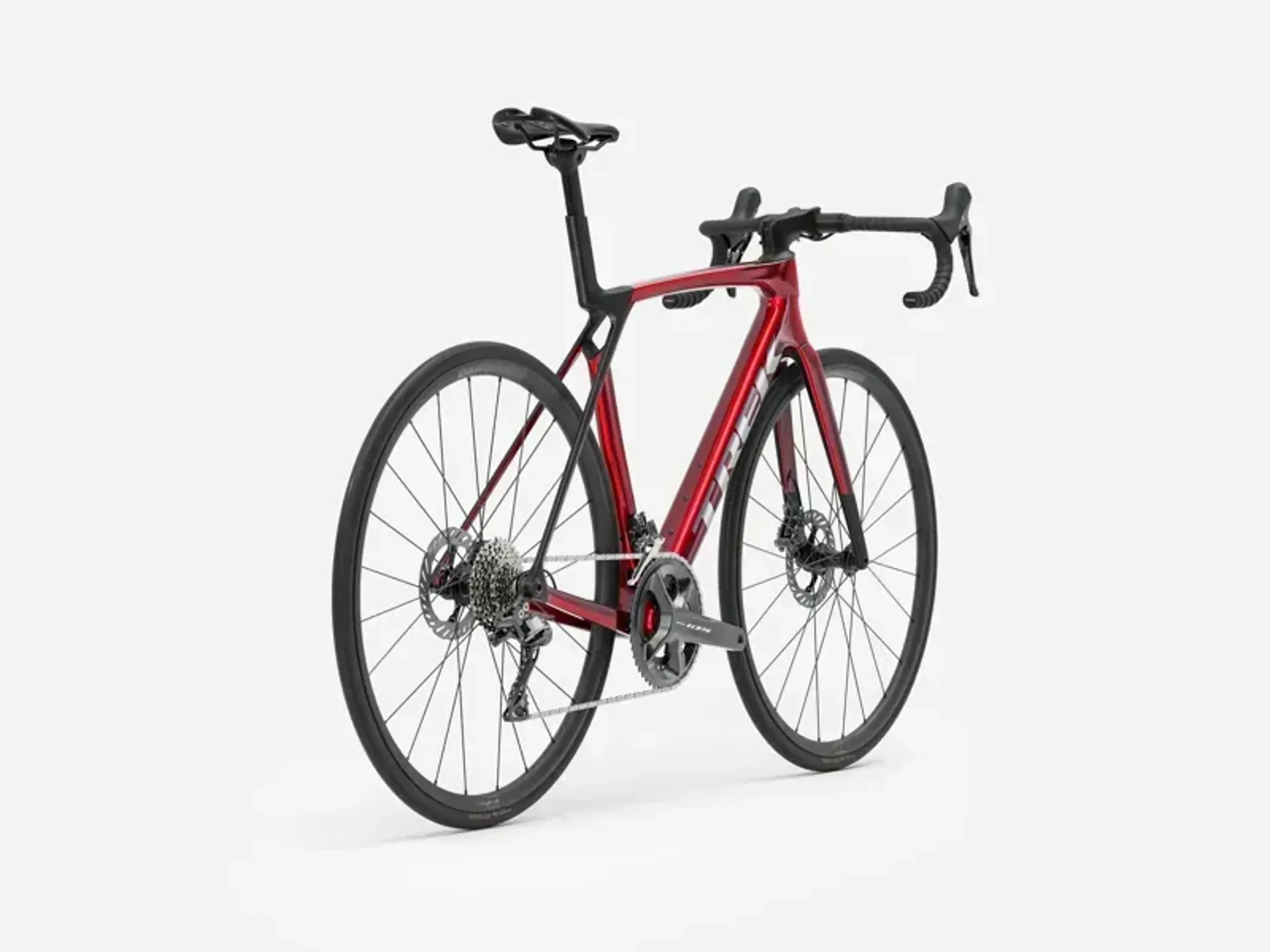

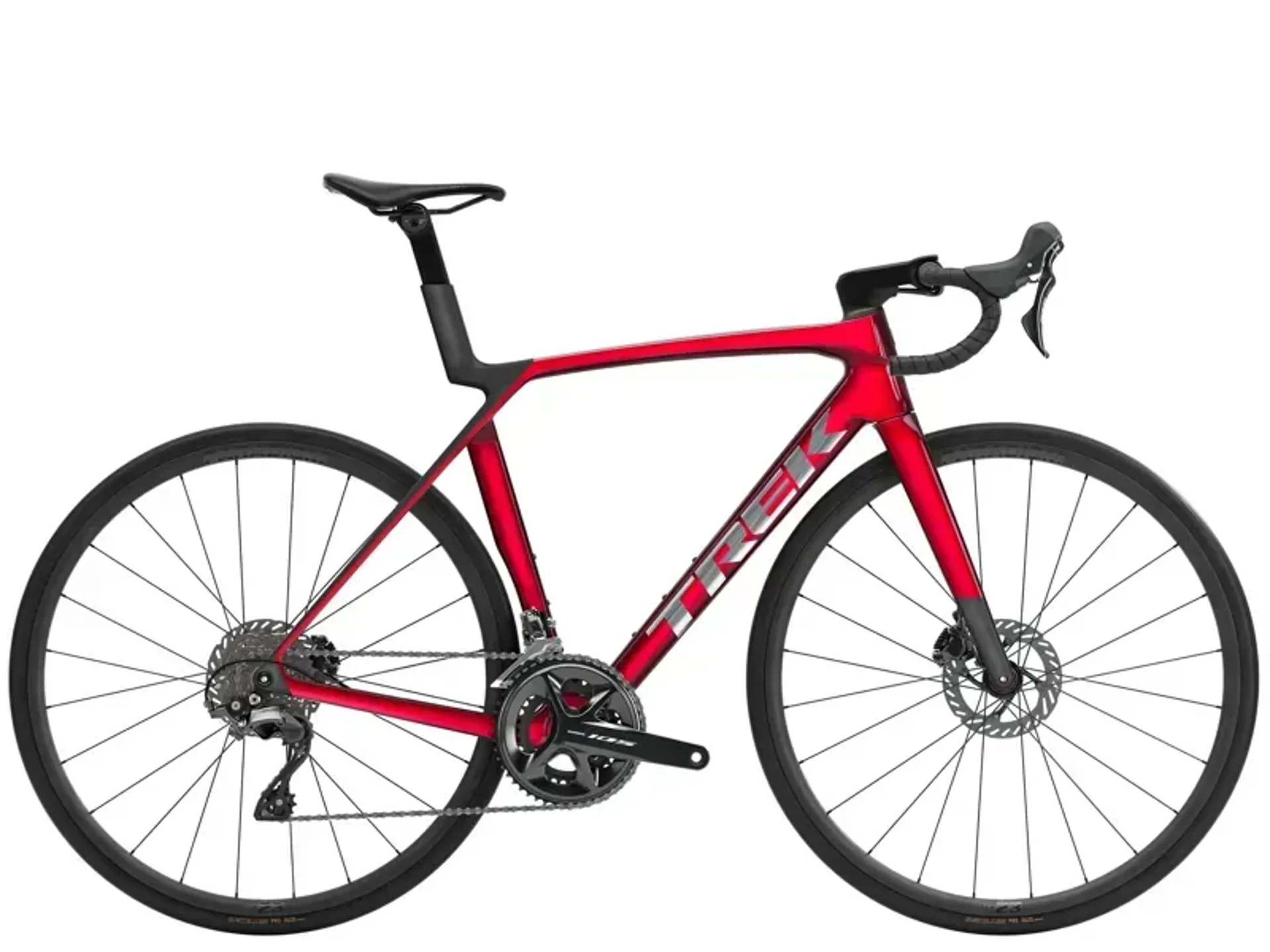

Trek Madone SL 5 Gen 8 Road Bike in Gloss Fury Red/Matte Deep Smoke

£2,900.00
Size Guide
Trek Madone SL 5 Gen 8 Road Bike in Gloss Dark Star/Matte Deep Smoke Trek Madone SL 5 Gen 8 Road Bike in Gloss Crystal White/Matte Deep Smoke Trek Madone SL 5 Gen 8 Road Bike in Matte Lavender Haze/Deep Smoke
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Trek Madone SL 5 Gen 8 Road Bike in Gloss Fury Red/Matte Deep Smoke

Season:2026

Brand:Trek

Code:57653RED

The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point.

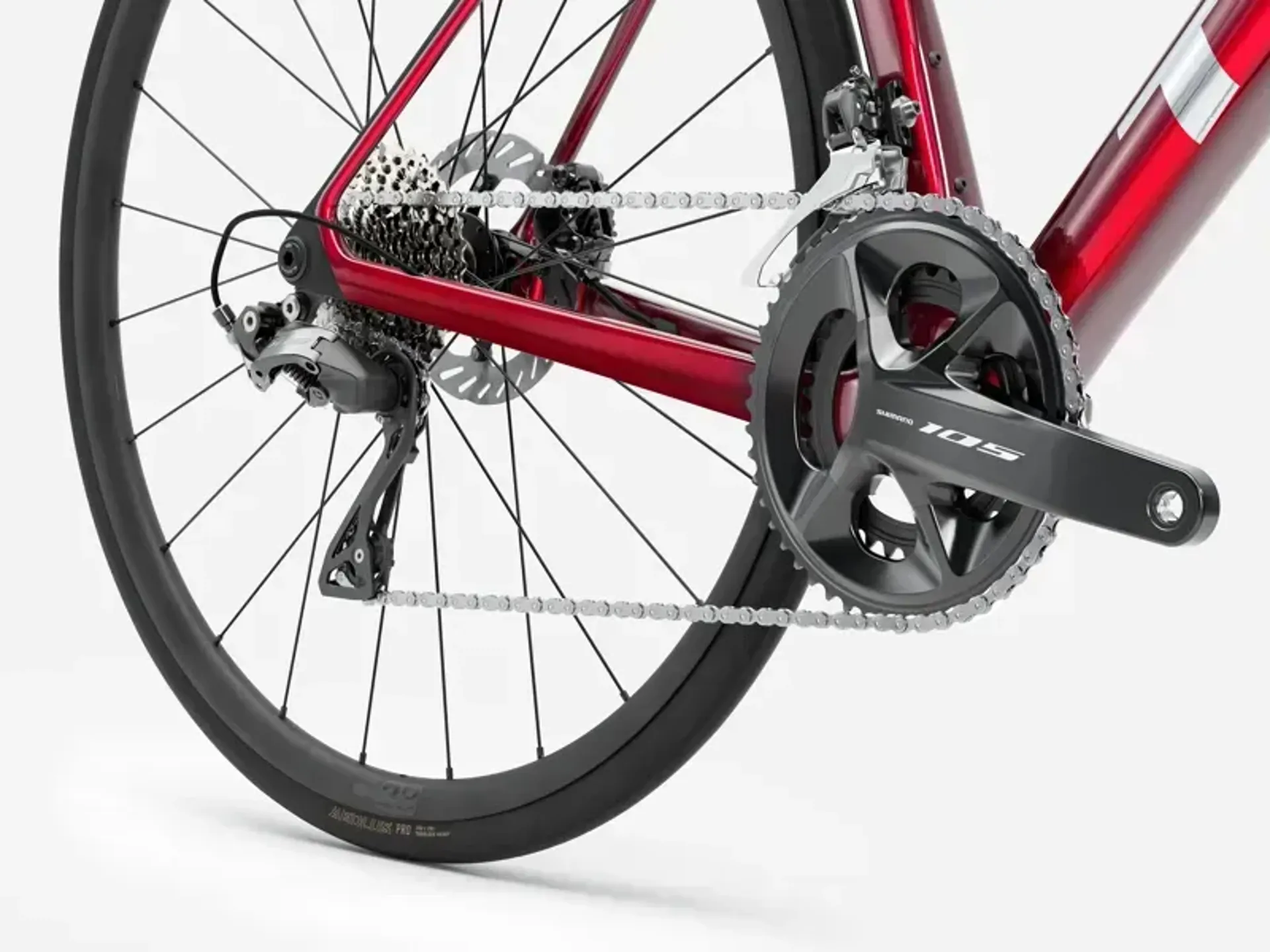

It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. A Shimano 105 group set, alloy handlebars, and alloy wheels keep the price down while still delivering clean mechanical shifting you can trust.

The Madone SL 5 Gen 8 was informed by feedback from Lidl-Trek's fastest sprinters and climbers.

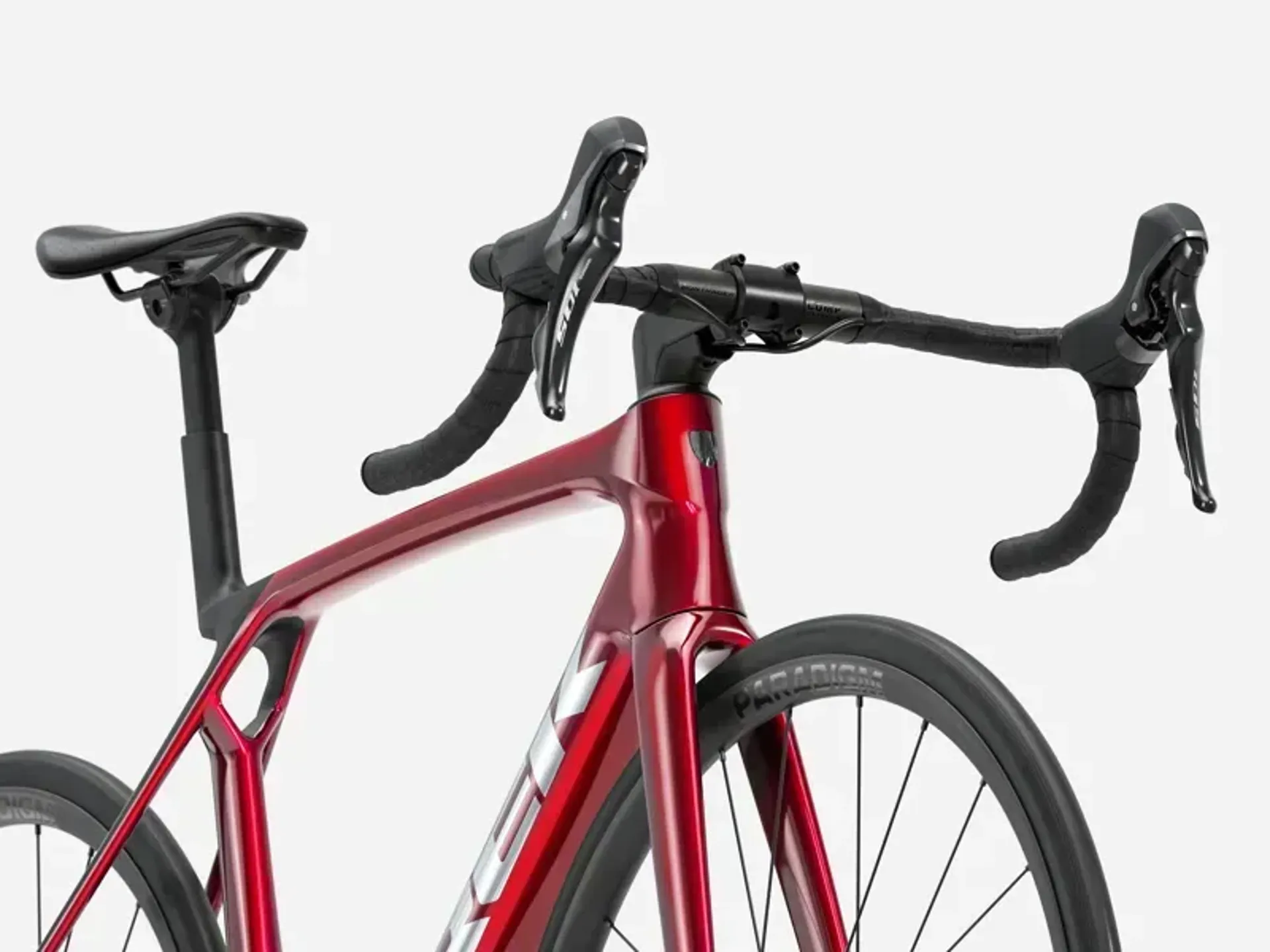

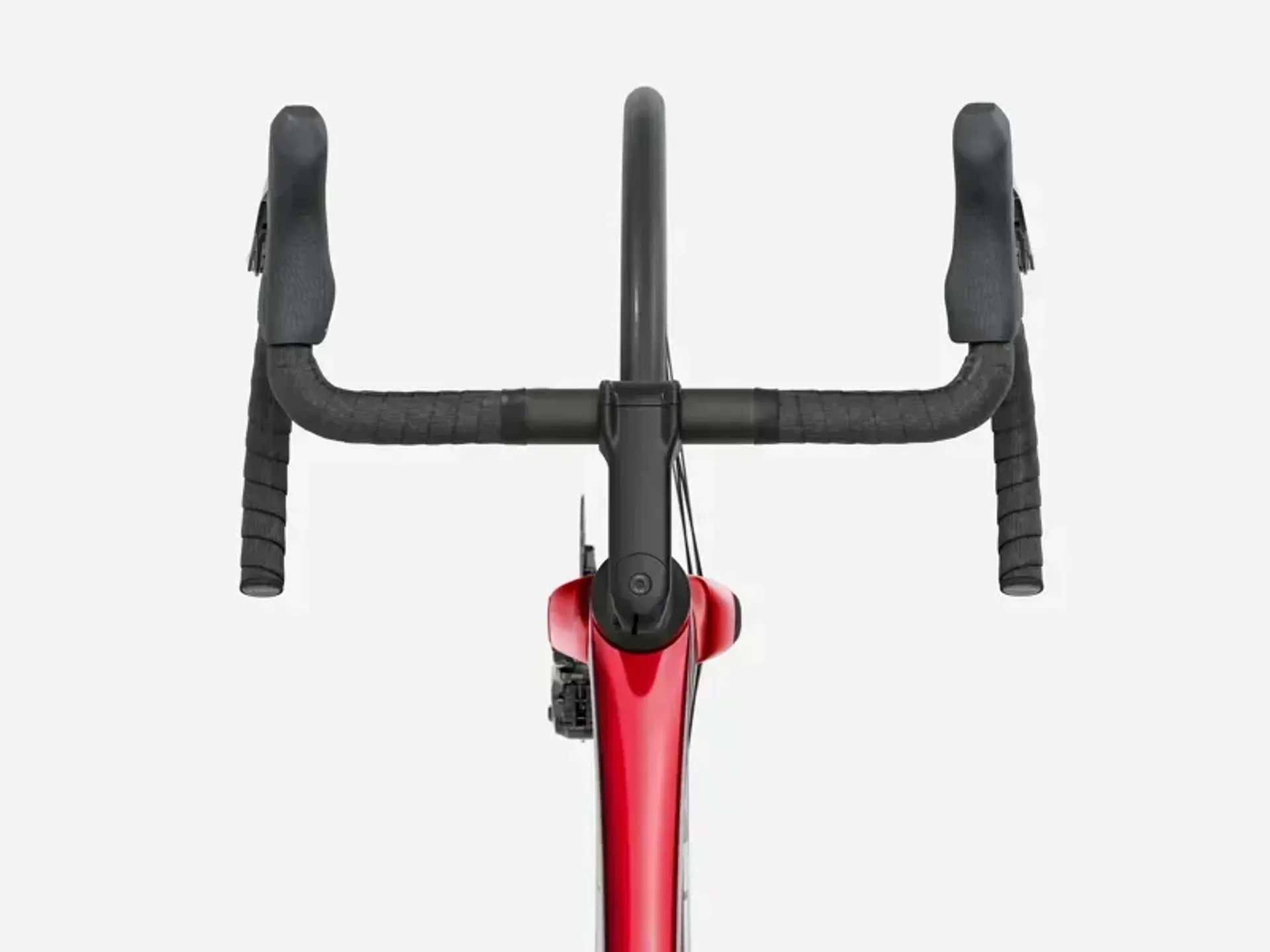

The Madone Gen 8 features hoods that are narrower than the drops so you can adjust your positioning to prioritise aerodynamics or power. The two-piece design lets you quickly and easily dial in your fit.

The add-on RSL Aero Bottles and Cages were designed with Madone Full System Foil aero shapes to make the whole rider system even faster.

Features:

  • New light and fast aero tube shaping paired with light-yet-economical 500 Series OCLV Carbon makes this bike the lightest Madone SL Disc f/s ever and an ideal climbing bike.
  • Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness that climbers crave. The bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.

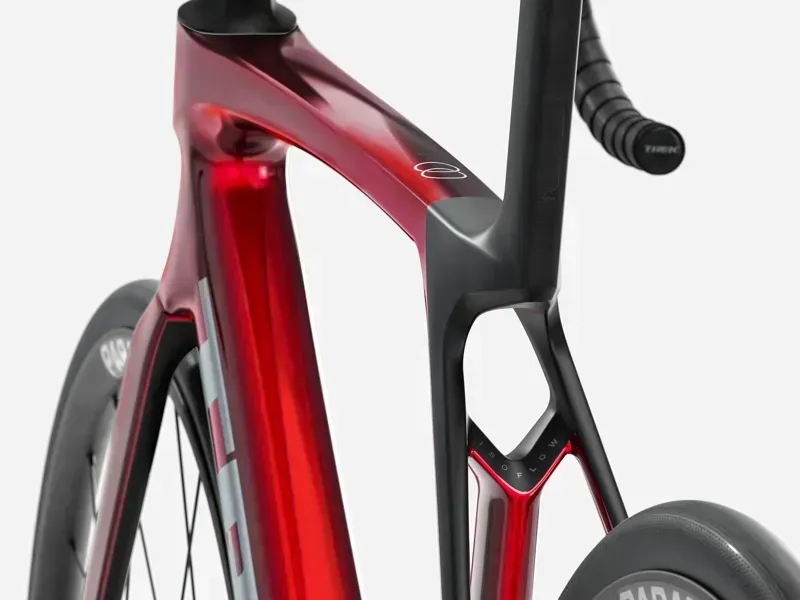

  • The race-focused comfort technology has been refined to be lighter and have nearly double the vertical compliance so you can ride stronger for longer.
Technical Information
  • Frame
    Size: S, XL, XS, L, M, ML. 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
  • Fork
    Size: S, XL, XS, L, M, ML. Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Front Derailleur
    Size: S, XL, XS, L, M, ML. Shimano 105 R7100, braze-on, down swing
  • Rear Derailleur
    Size: S, XL, XS, L, M, ML. Shimano 105 R7100, 36T max cog
  • Crank
    Size: S, XS. Shimano 105 R7100, 50/34, 165 mm length
  • Crank
    Size: M, ML. Shimano 105 R7100, 50/34, 170 mm length
  • Crank
    Size: XL, L. Shimano 105 R7100, 50/34, 172.5 mm length
  • Bottom Bracket
    Size: S, XL, XS, L, M, ML. Praxis, T47 threaded, internal bearing
  • Cassette
    Size: S, XL, XS, L, M, ML. Shimano 105 7101, 11-34, 12-speed
  • Chain
    Size: S, XL, XS, L, M, ML. Shimano SLX M7100, 12-speed
  • Max chainring size
    1x: 54T, 2x: 56/43
  • Front Hub
    Size: S, XL, XS, L, M, ML. Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Front Skewer
    Size: S, XL, XS, L, M, ML. Bontrager Switch chamfered thru axle
  • Rear Hub
    Size: S, XL, XS, L, M, ML. Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Rear Skewer
    Size: S, XL, XS, L, M, ML. Bontrager Switch chamfered thru axle, removable lever
  • Rim
    Size: S, XL, XS, L, M, ML. Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
  • Spokes
    Size: S, XL, XS, L, M, ML. 14 g stainless steel, black
  • Tire
    Size: S, XL, XS, L, M, ML. Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
  • Max tyre size
    32 mm (as measured, see manual for details)
  • Saddle
    Size: S, XL, XS, L, M, ML. Bontrager Aeolus Elite, austenite rails, 145 mm width
  • Seatpost
    Size: S, XL, XS, L, M, ML. Madone aero carbon seat post, 0 mm offset, short length
  • Handlebar
    Size: XS. Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
  • Handlebar
    Size: S, M. Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
  • Handlebar
    Size: L, ML. Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
  • Handlebar
    Size: XL. Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
  • Handlebar Tape
    Size: S, XL, XS, L, M, ML. Trek EcoTack
  • Stem
    Size: XS. Trek RCS Pro, -7-degree, 80 mm length
  • Stem
    Size: S, M. Trek RCS Pro, -7-degree, 90 mm length
  • Stem
    Size: L, ML. Trek RCS Pro, -7-degree, 100 mm length
  • Stem
    Size: XL. Trek RCS Pro, -7-degree, 110 mm length
  • Rotor size
    Max brake rotor sizes: 180 mm front, 160 mm rear
