The Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail. It features TQ's HPR60 motor, a 580 Wh battery, and premium components.
The Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail. It features TQ's HPR60 motor, a 580 Wh battery, and premium components.
Trek

Trek Fuel+ EX 9.7 Gen 2 E-Mountain Bike in Lichen Green/Keswick Green Splatter

£5,500.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

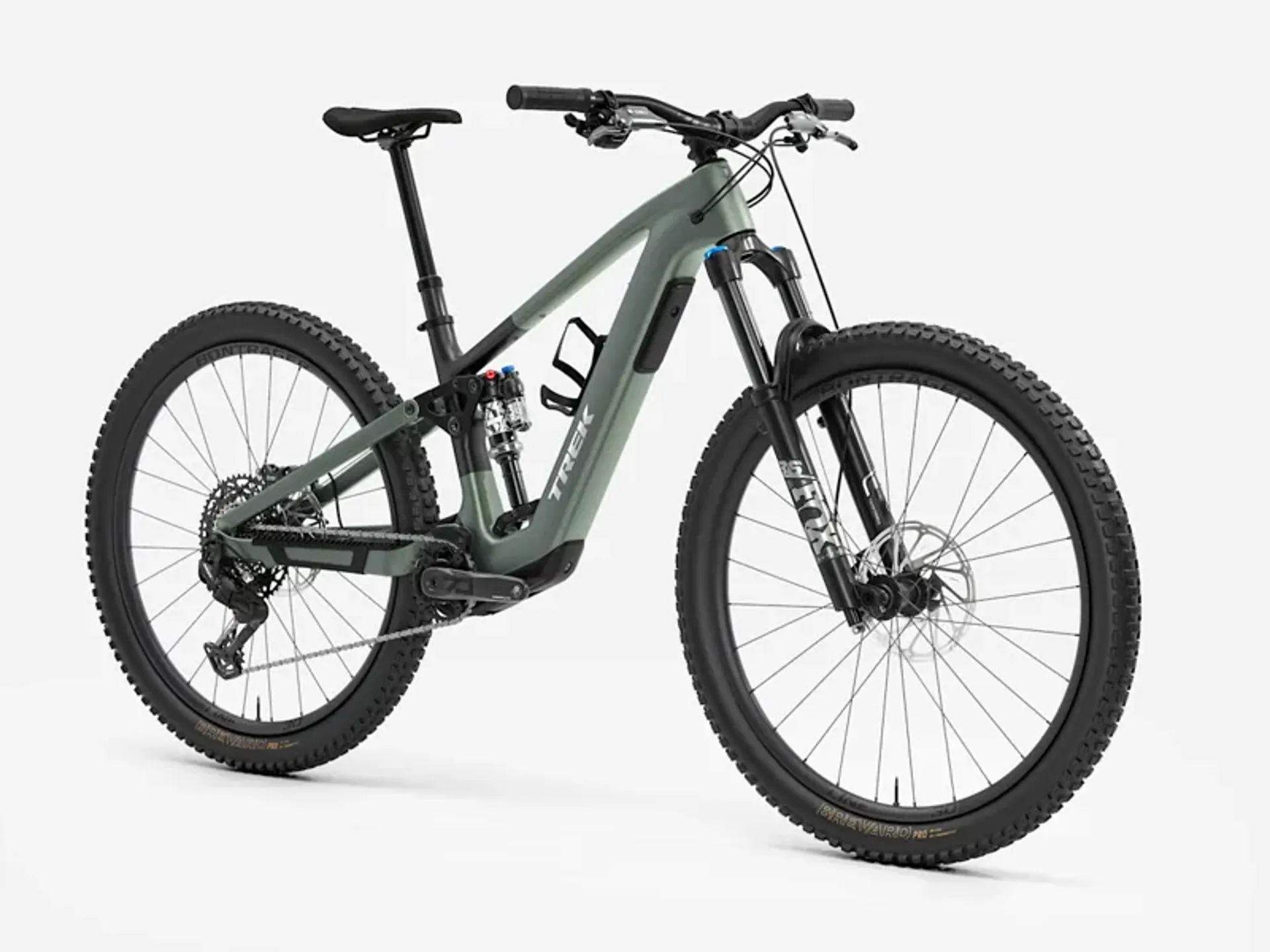

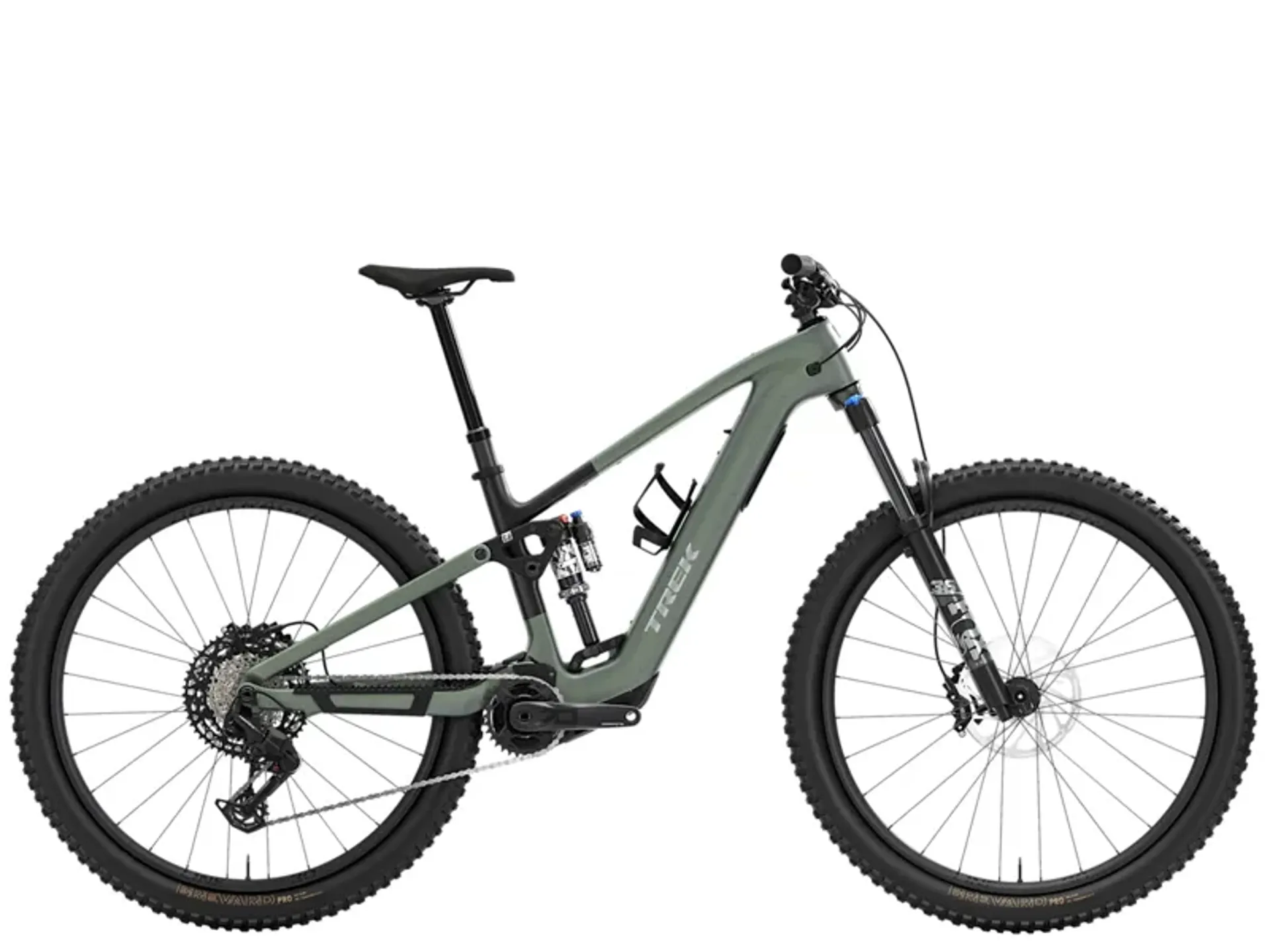

Trek Fuel+ EX 9.7 Gen 2 E-Mountain Bike in Lichen Green/Keswick Green Splatter

Season:2026

Brand:Trek

Code:56295GRN

The Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It offers the perfect balance of price and performance.

This bike is equipped with the smooth and quiet boost of TQ's HPR60 motor and a 580 Wh battery for bigger rides. Key components include a Fox Rhythm 36 fork, Fox Performance Float X shock, SRAM Eagle T-Type shifting, and a Bontrager Line dropper post.

Only you can define your perfect trail bike — that's why the Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.

The Fuel+ features a new frame design that gives you loads of room for range extenders, long dropper posts, bigger shocks, and frame bags. Stash ride essentials with in-frame storage on all Fuel models (both carbon and alloy). Plus, top tube accessory mounts let you load up even more.

The Fuel+'s new HPR60 motor delivers more power and torque than before, and kicks in at a lower cadence so you feel the boost earlier. Plus, a 580 Wh battery gives you more efficient power for your longest rides yet.

Features:

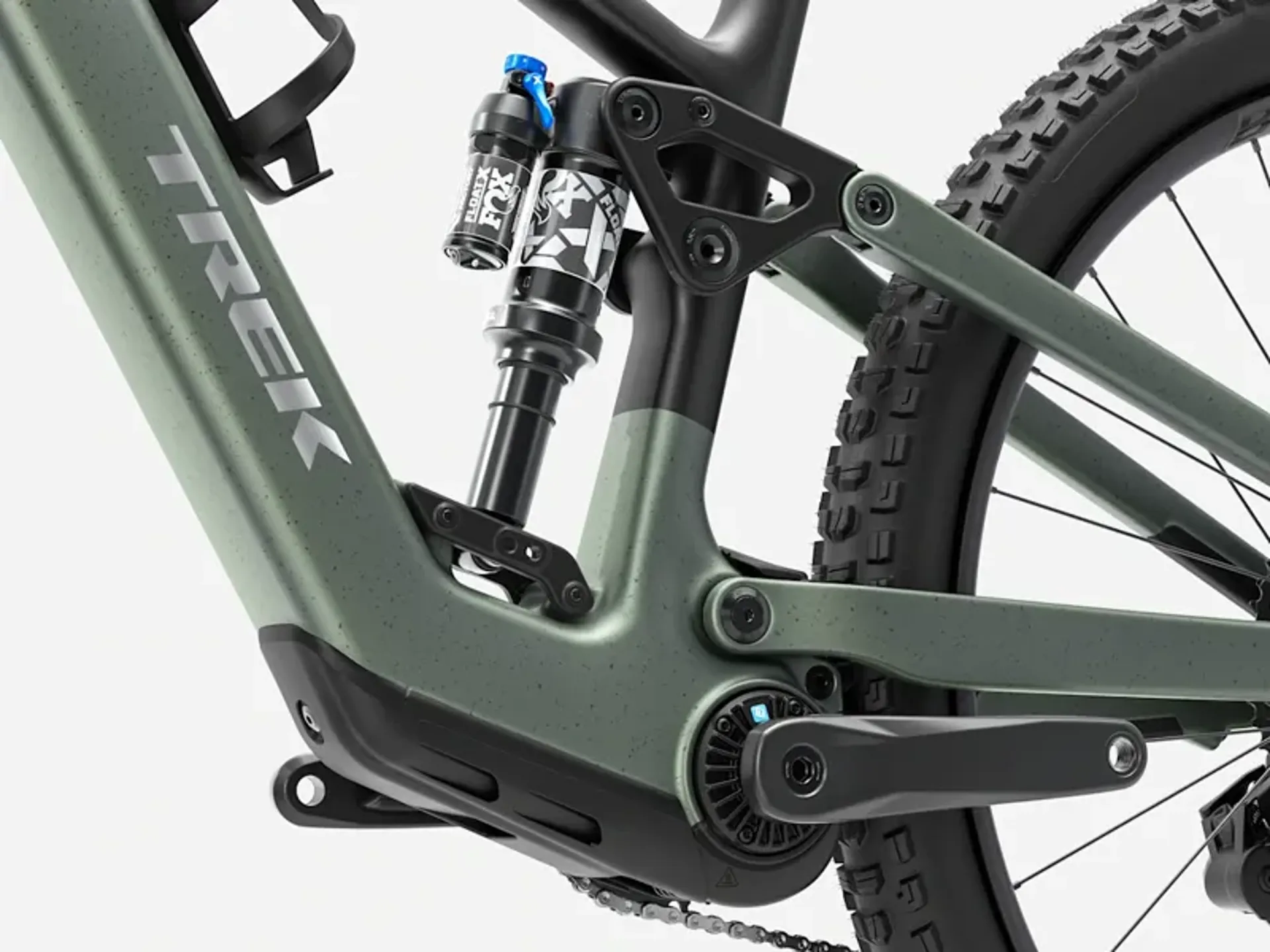

  • Adjustable leverage rate: Flip the chip in the lower shock mount for a more progressive leverage rate, offering more bottom-out resistance without giving up small-bump sensitivity.
  • Zero Stack integrated headset: With a ZS standard headset, you have loads of options for aftermarket upgrades, including angle adjust.
  • Active Braking Pivot: Allows engineers to tune how the suspension reacts to acceleration and braking forces independently, providing more confident control.

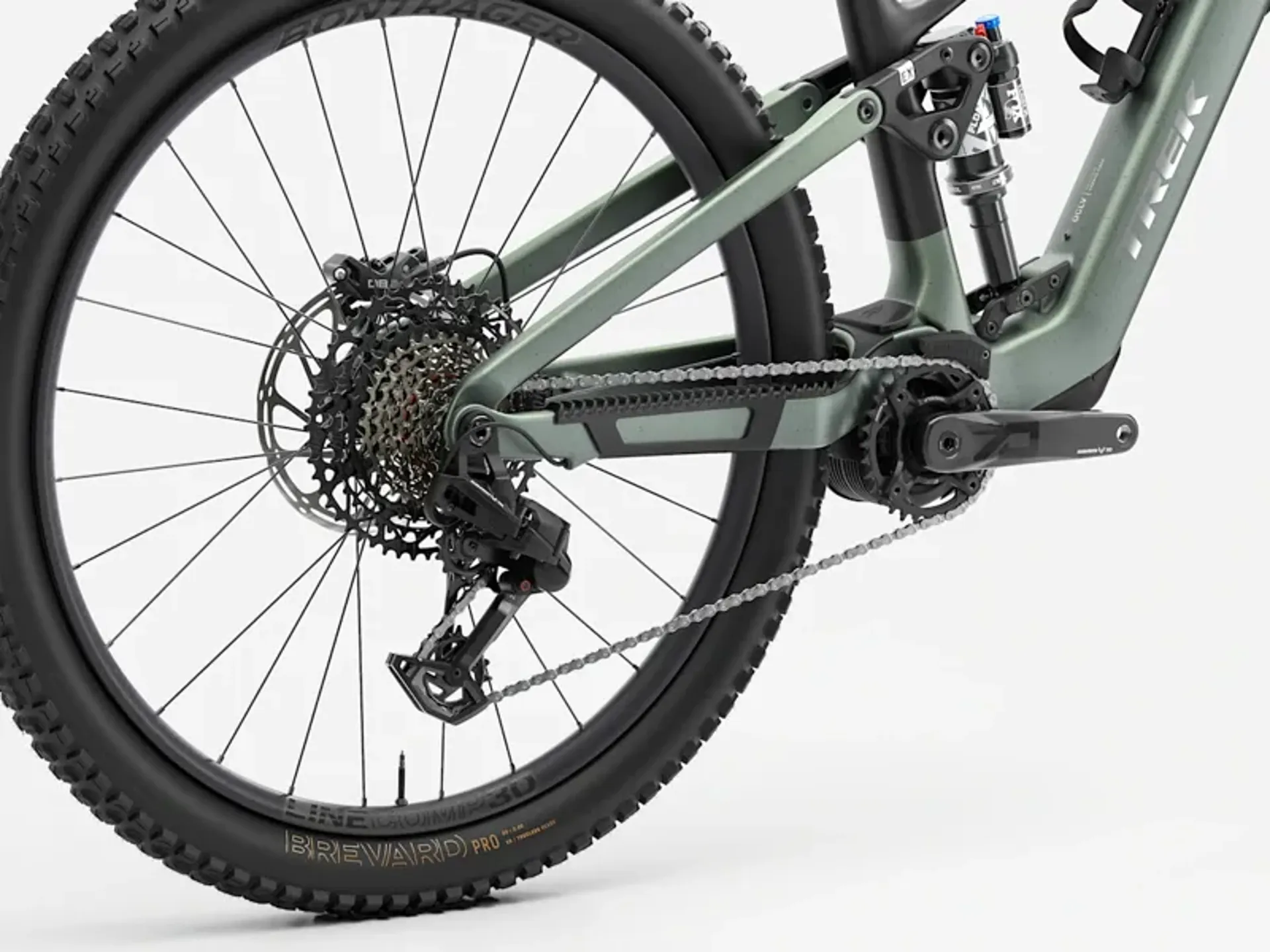

  • Transition to Transmission: The SRAM Eagle T-Type transmission mounts directly to the frame, making for a more robust system that is more precise under load and easier to set up.
Technical Information
  • Frame
    OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
  • Fork
    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel
  • Shock
    Fox Performance Float X, 2-position damper, 205 mm x 60 mm
  • Hub front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Rim
    Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
  • Spokes
    14 g stainless steel, black
  • Tyre (Size: S)
    Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
  • Tyre (Size: S, M, L, XL, XXL)
    Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.50", Fork: See manufacturer
  • Battery
    TQ 580Wh
  • Charger
    TQ 4A charger
  • Shifter
    SRAM Eagle 70, 12-speed
  • Rear derailleur
    SRAM Eagle 70, T-Type
  • Crank
    SRAM EAGLE 70, 160 mm length
  • Chainring
    SRAM T-Type, 32T, alloy
  • Cassette
    SRAM Eagle XS-1270, T-Type,10-52, 12-speed
  • Chain
    SRAM Eagle 70, T-Type, 12-speed
  • Max. chainring size
    1x: 34T, min 30T
  • Saddle
    Bontrager Verse P3, chromoly rails
  • Seatpost (Size: S)
    Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
  • Seatpost (Size: M)
    Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
  • Seatpost (Size: L, XL, XXL)
    Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
  • Handlebar
    Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
  • Grips
    Trek Line Elite, lock-on
  • Stem
    Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Head set
    FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
  • Brake
    SRAM DB 8 4-piston hydraulic disc
  • Brake rotor (Size: S, M, L, XL, XXL) - 200mm
    SRAM CentreLine, 6-bolt, round-edge, 200 mm
  • Brake rotor (Size: S, M, L, XL, XXL) - 200mm alternative
    SRAM CenterLine 2.0, 6-bolt, 200 mm
  • Rotor size
    Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
  • Weight
    M - 19.73 kg / 43.5 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
