Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road.
Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road.
Trek

Trek Checkmate SLR 7 AXS Gravel Bike in Hex Blue/Plasma Grey Pearl

£7,000.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

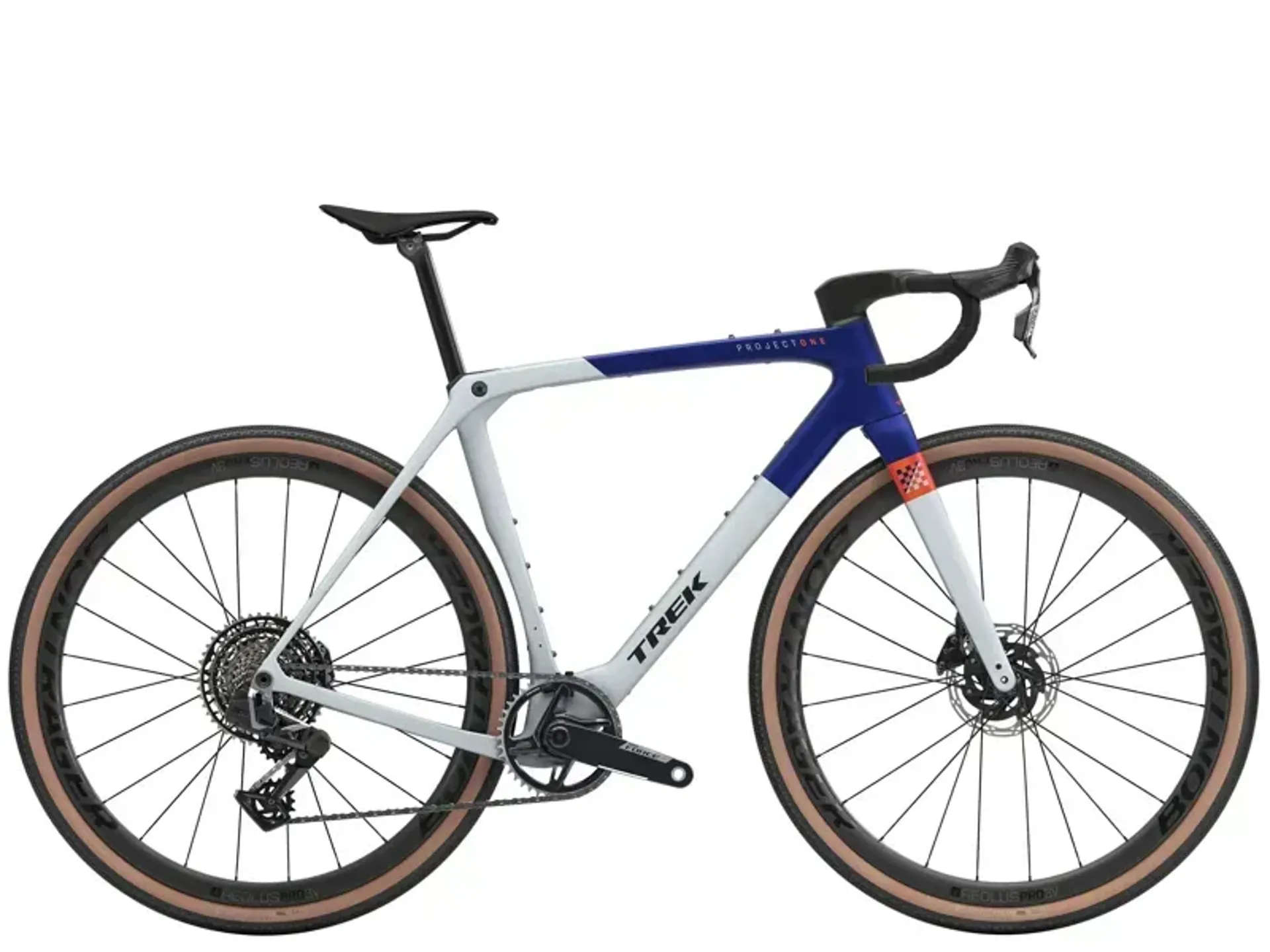

Trek Checkmate SLR 7 AXS Gravel Bike in Hex Blue/Plasma Grey Pearl

Season:2026

Brand:Trek

Code:58668BLU

Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road.

To deliver the performance you crave on race day, Checkmate combines a lightweight aero design with IsoSpeed and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. It's topped off with a SRAM Force XPLR AXS E1 wireless drivetrain, carbon wheels, and Trek Aero RSL bar/stem for a lightweight build.

Features:

  • You're after a gravel bike that's made to soar right off the starting line with Full System Foil aero tube shapes and an aero-yet-ergonomic one-piece bar/stem
  • Comfort isn't kicked to the side, thanks to road-smoothing IsoSpeed tech and clearance room for tires up to 45mm wide (as measured)
  • New Gravel Race geometry keeps you tucked out of the wind and poised for the attack without compromising the fit you need for comfort through long miles
  • A premium, ultra-light 800 Series OCLV Carbon frame helps you save energy by reducing road chatter
  • It comes equipped with plenty of mounts to add Adventure Bags and carry all your race-day essentials
Technical Information
  • Frame
    800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

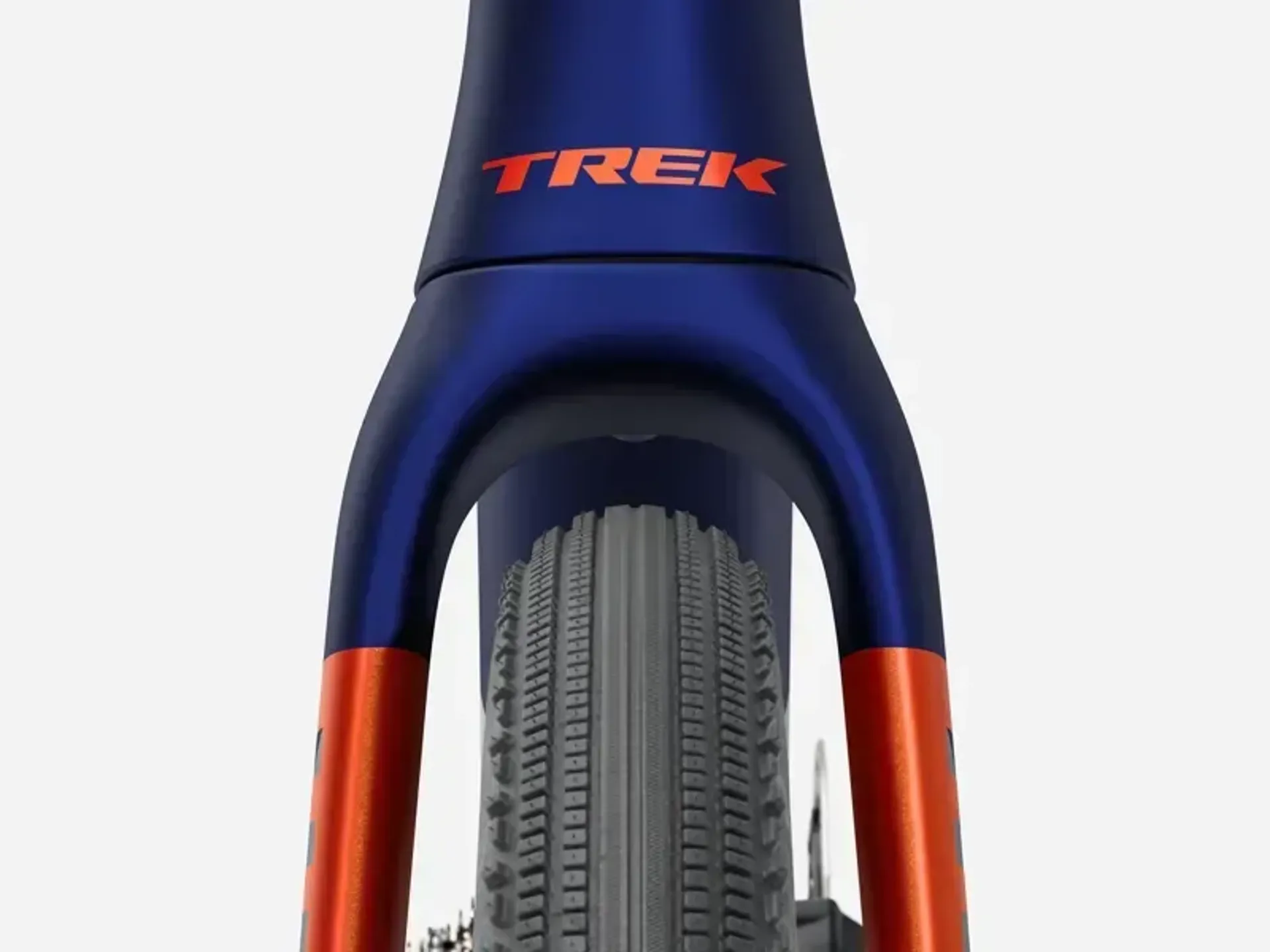

  • Fork
    Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
  • Battery
    SRAM AXS battery pack (with charger)
  • Shifter
    SRAM Force AXS, 13 speed

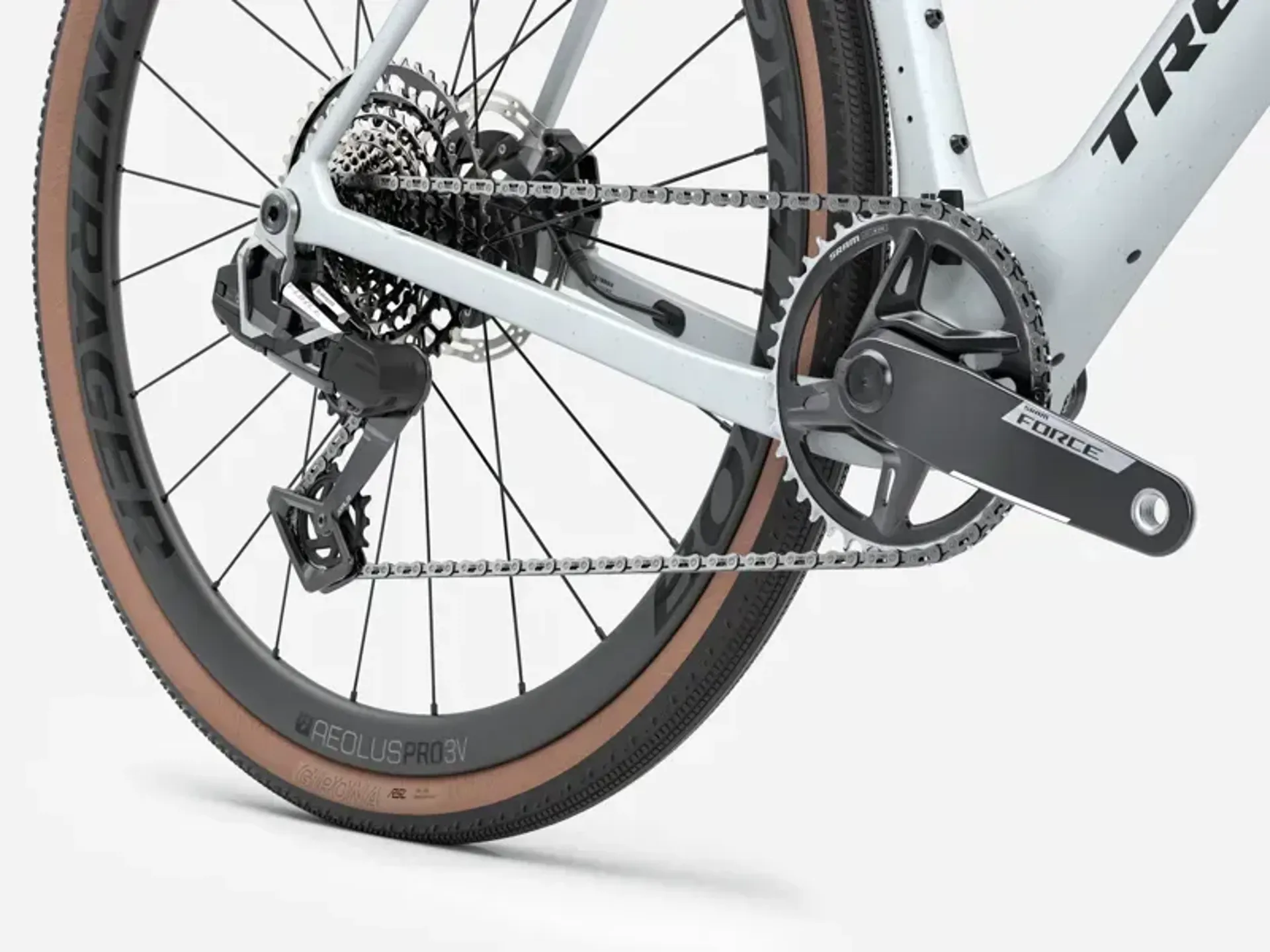

  • Rear derailleur
    SRAM Force XPLR AXS, 46T max cog
  • Crank
    XS, S: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165mm length M, ML: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170mm length L, XL: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5mm length
  • Bottom bracket
    SRAM DUB Wide, T47 threaded, internal bearing
  • Cassette
    SRAM Force XPLR XG-1371, 10-46, 13 speed
  • Wheel front
    Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle
  • Wheel rear
    Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle, removable lever
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tire
    Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
  • Tire part
    Bontrager TLR sealant, 6oz
  • Rim strip
    Bontrager TLR
  • Max tire size
    45mm without fenders, 38mm with fenders (as measured, see manual for details)
  • Seatpost
    KVF aero carbon seatpost, 5mm offset, 280mm length

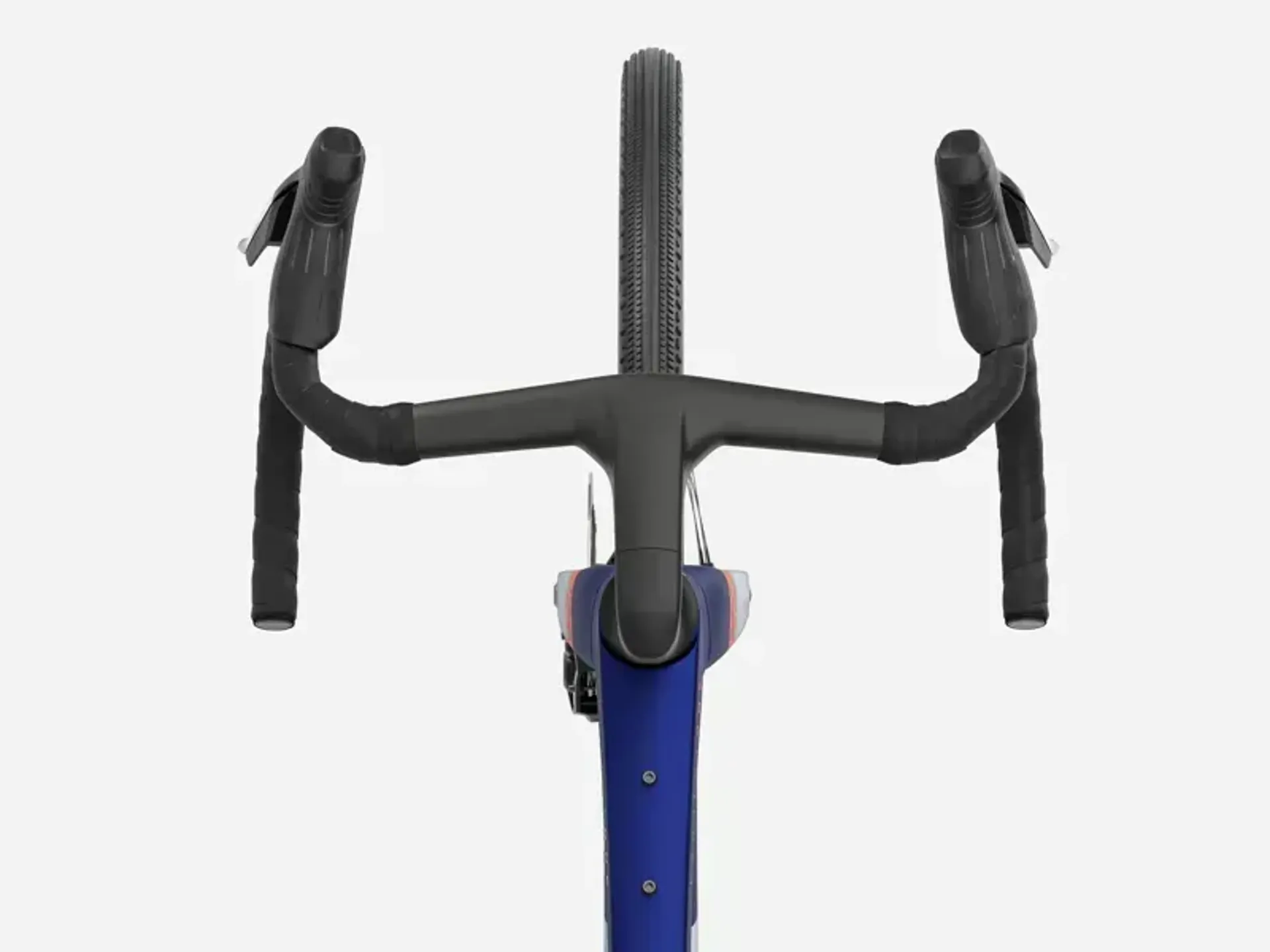

  • Handlebar/stem (integrated)
    XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
  • Handlebar tape
    Trek EcoTack
  • Brake rotor
    SRAM Paceline X, rounded, centerlock, 160mm
  • Rotor size
    Max brake rotor sizes: 180mm front & rear
