Frame

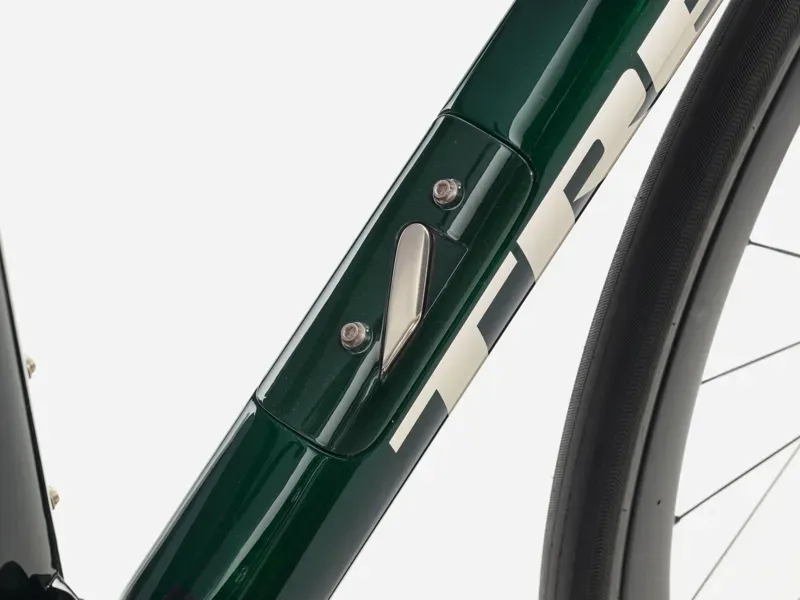

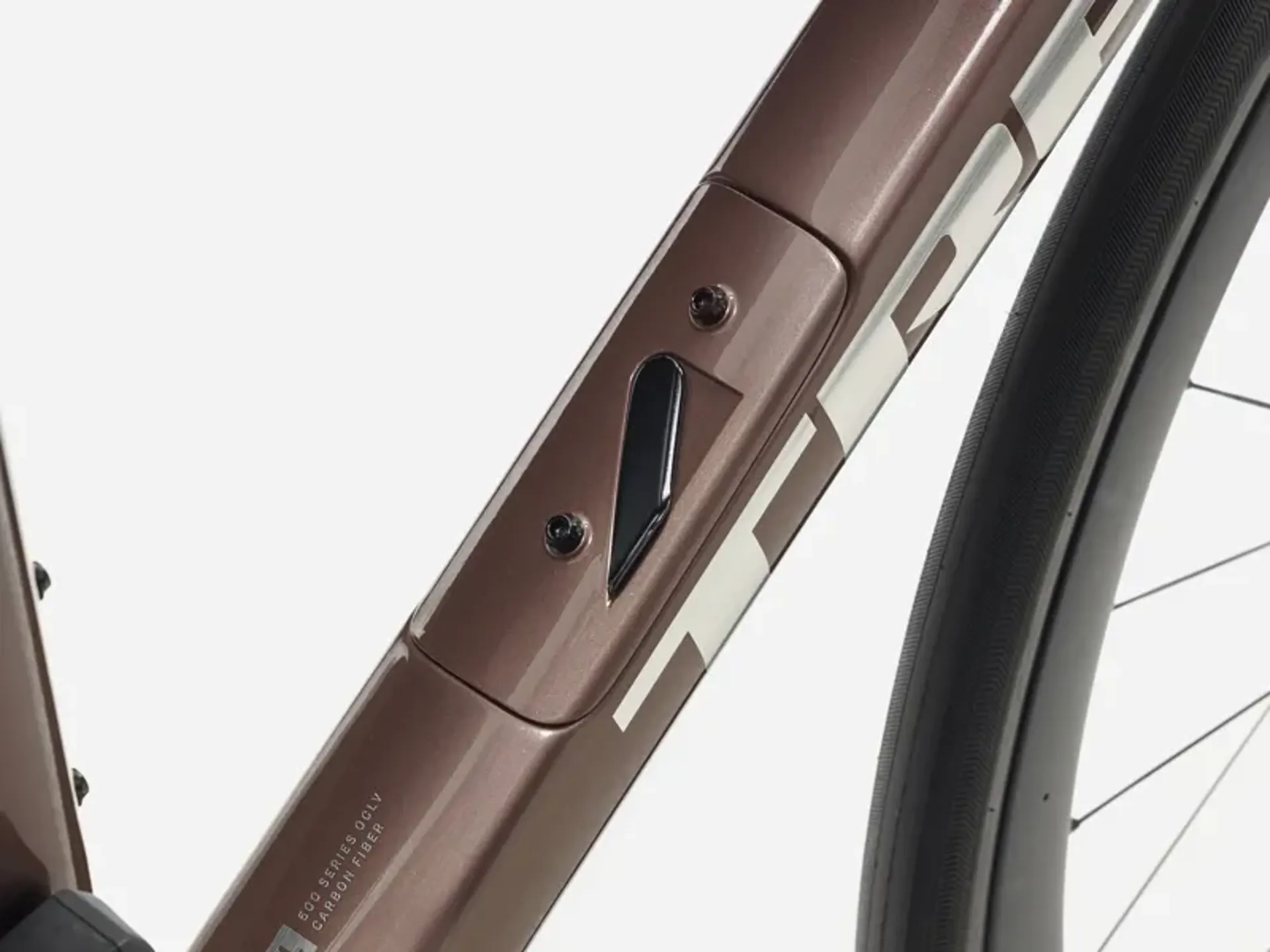

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
-
Fork
Sizes: 44, 47, 50, 52, 54, 56, 58, 60, 62. Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
-
Weight
56 - 8.42 kg / 18.57 lbs (with TLR sealant, no tubes)
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
-
Battery
Shimano BT-DN300
-
Shifter
Shimano Ultegra R8170 Di2, 12-speed
-
Front derailleur
Shimano Ultegra R8150 Di2, braze-on, down swing
-
Rear derailleur
Shimano Ultegra R8150 Di2, 34T max cog
-

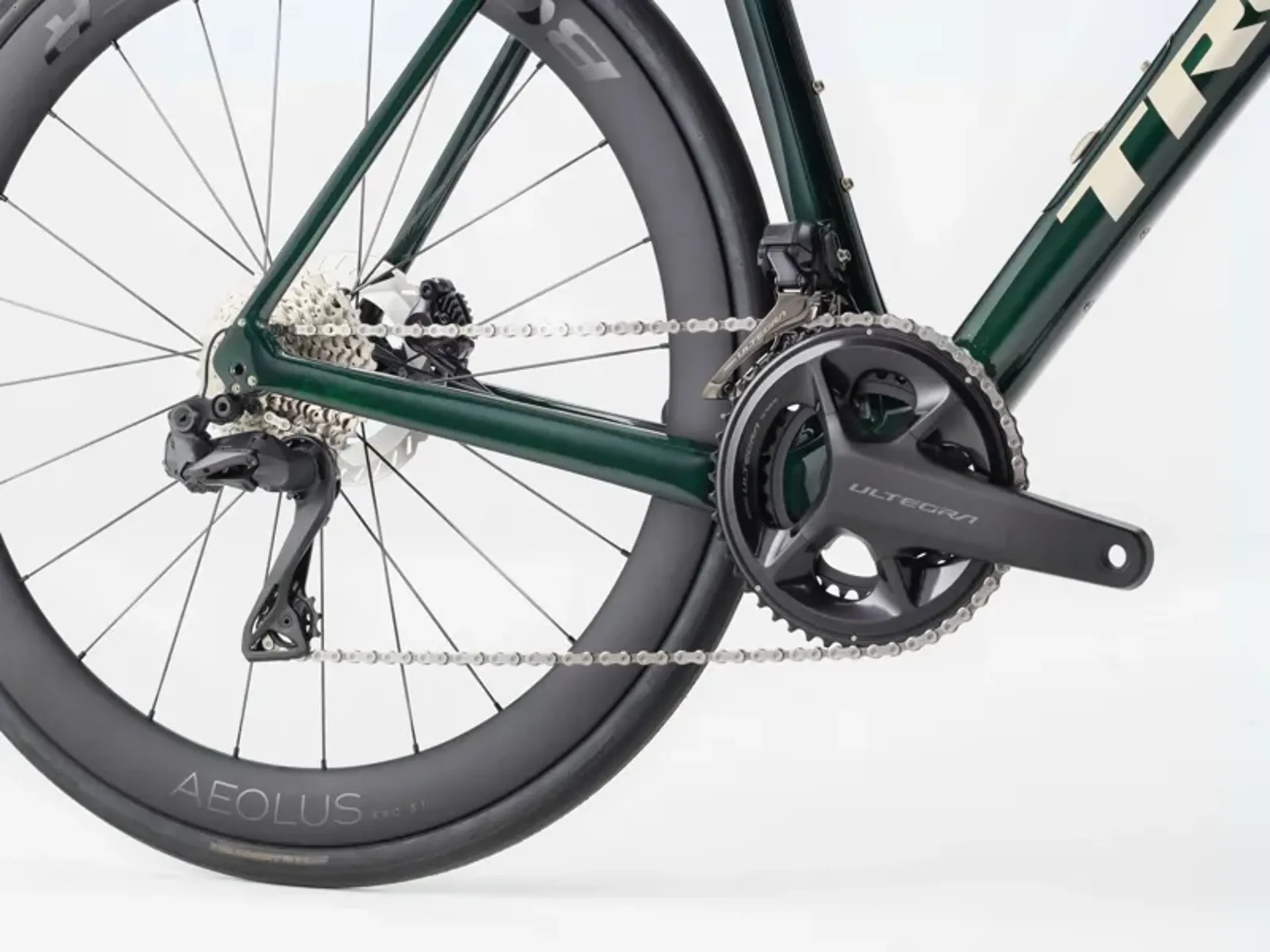

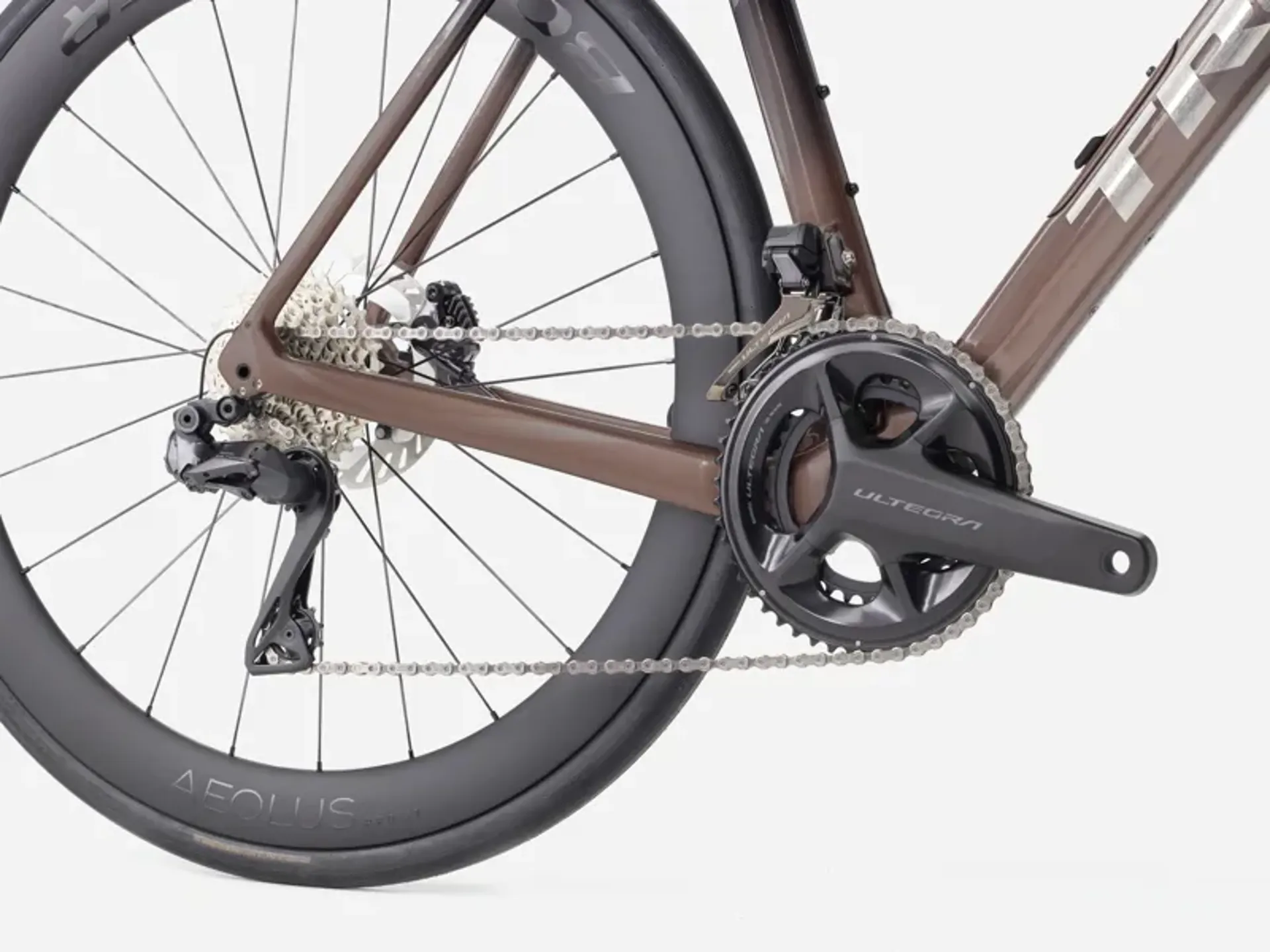

Crank
Sizes 44, 47, 50: Shimano Ultegra R8100, 50/34, 165 mm length. Sizes 52, 54, 56: Shimano Ultegra R8100, 50/34, 170 mm length. Sizes 58, 60, 62: Shimano Ultegra R8100, 50/34, 172.5 mm length
-
Bottom bracket
Praxis, T47 threaded, internal bearing
-
Cassette
Shimano Ultegra R8101, 11-34, 12-speed
-
Chain
Shimano XT M8100, 12-speed
-
Max. chainring size
1x: 48T, 2x: 52/36
-
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
-
Wheel rear
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
-
Skewer front
Bontrager Switch thru-axle
-
Skewer rear
Bontrager Switch thru axle, removable lever
-
Tyre
Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32 mm
-
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
-
Max tyre size
38 mm without mudguards, 35 mm with mudguards (as measured, see manual for details)
-
Saddle
Verse Short Comp, steel rails, 145 mm width
-
Seatpost
Sizes 44, 47, 50, 52, 54, 56: KVF aero carbon seat post, 20 mm offset, 280 mm length. Sizes 58, 60, 62: KVF aero carbon seat post, 20 mm offset, 320 mm length
-

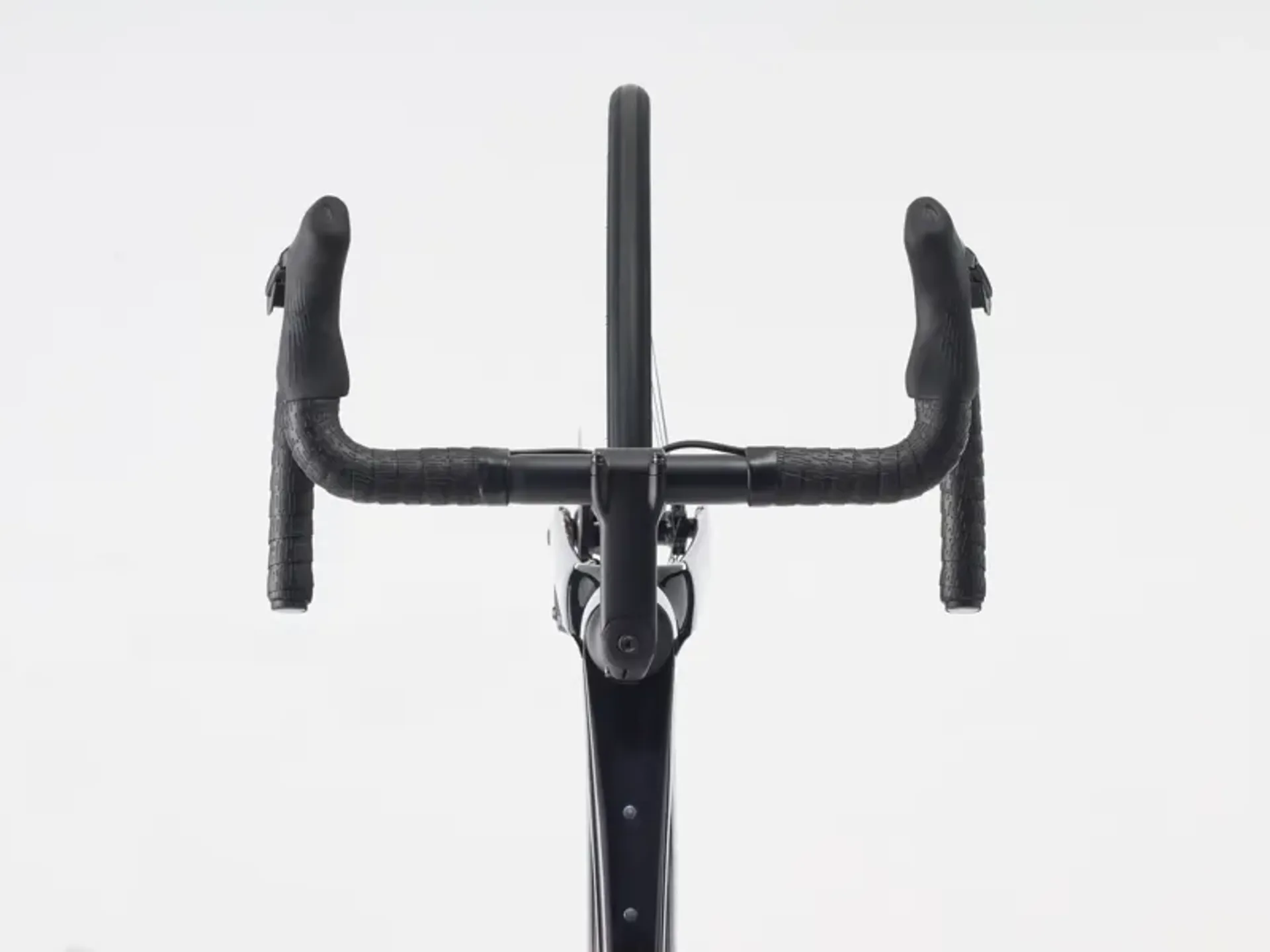

Handlebar
Sizes 44, 47: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width. Sizes 50, 52: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width. Sizes 54, 56, 58: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width. Sizes 60, 62: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
-
Handlebar tape
Trek EcoTack
-
Stem
Size 44: Trek RCS Pro, -7-degree, 60 mm length. Size 47: Trek RCS Pro, -7-degree, 70 mm length. Size 50: Trek RCS Pro, -7-degree, 80 mm length. Sizes 52, 54: Trek RCS Pro, -7-degree, 90 mm length. Sizes 56, 58: Trek RCS Pro, -7-degree, 100 mm length. Sizes 60, 62: Trek RCS Pro, -7-degree, 110 mm length
-
Brake rotor
Shimano CL800, CentreLock, 160 mm
-
Rotor size
Max brake rotor sizes: 160 mm front and rear
