The Magene TEO P515 Power Meter Chainset features a 425g lightweight carbon design, delivering ±1% power accuracy and 380 hours of battery life.
The Magene TEO P515 Power Meter Chainset features a 425g lightweight carbon design, delivering ±1% power accuracy and 380 hours of battery life.
Magene

Magene TEO P515 Power Meter Chainset in Black

£599.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

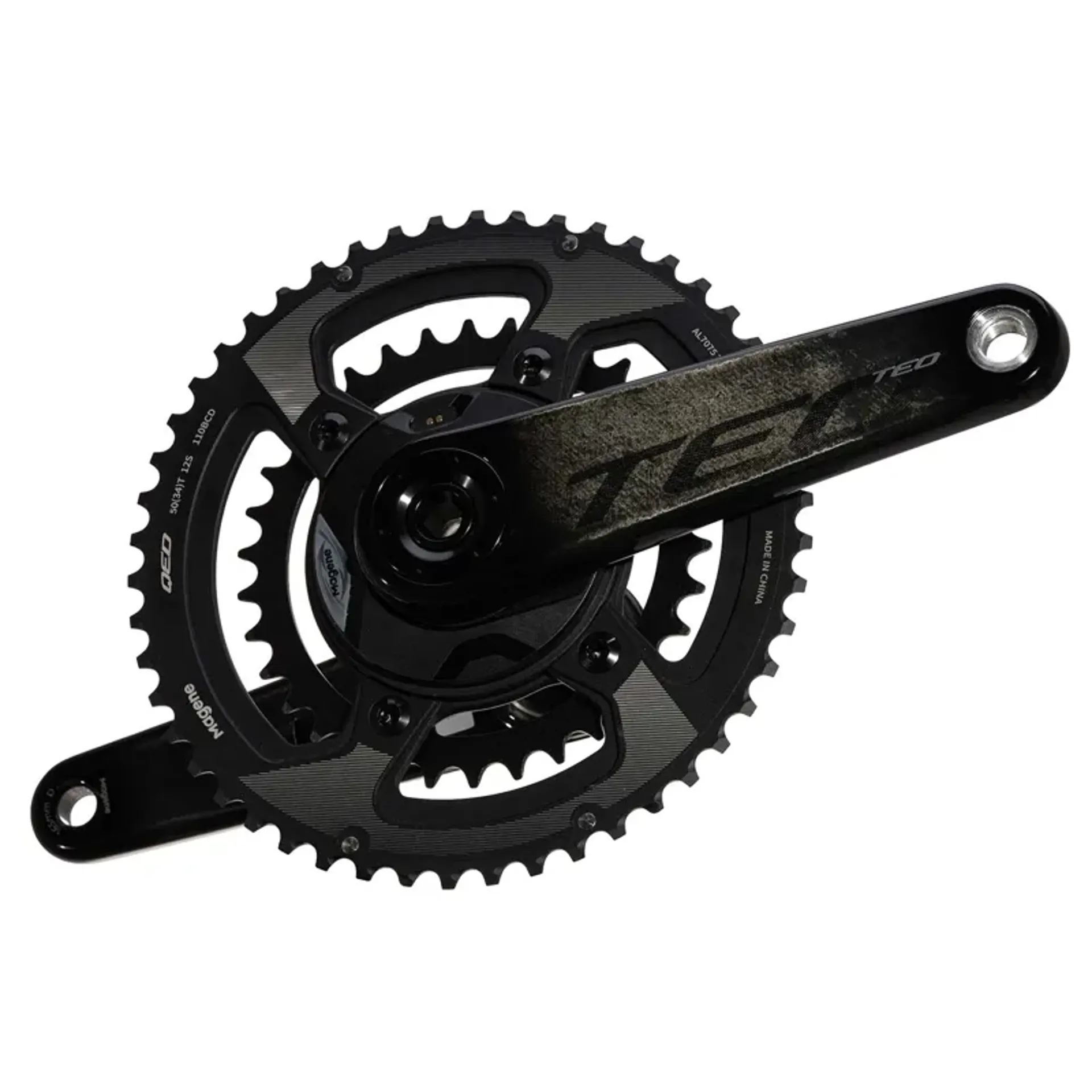

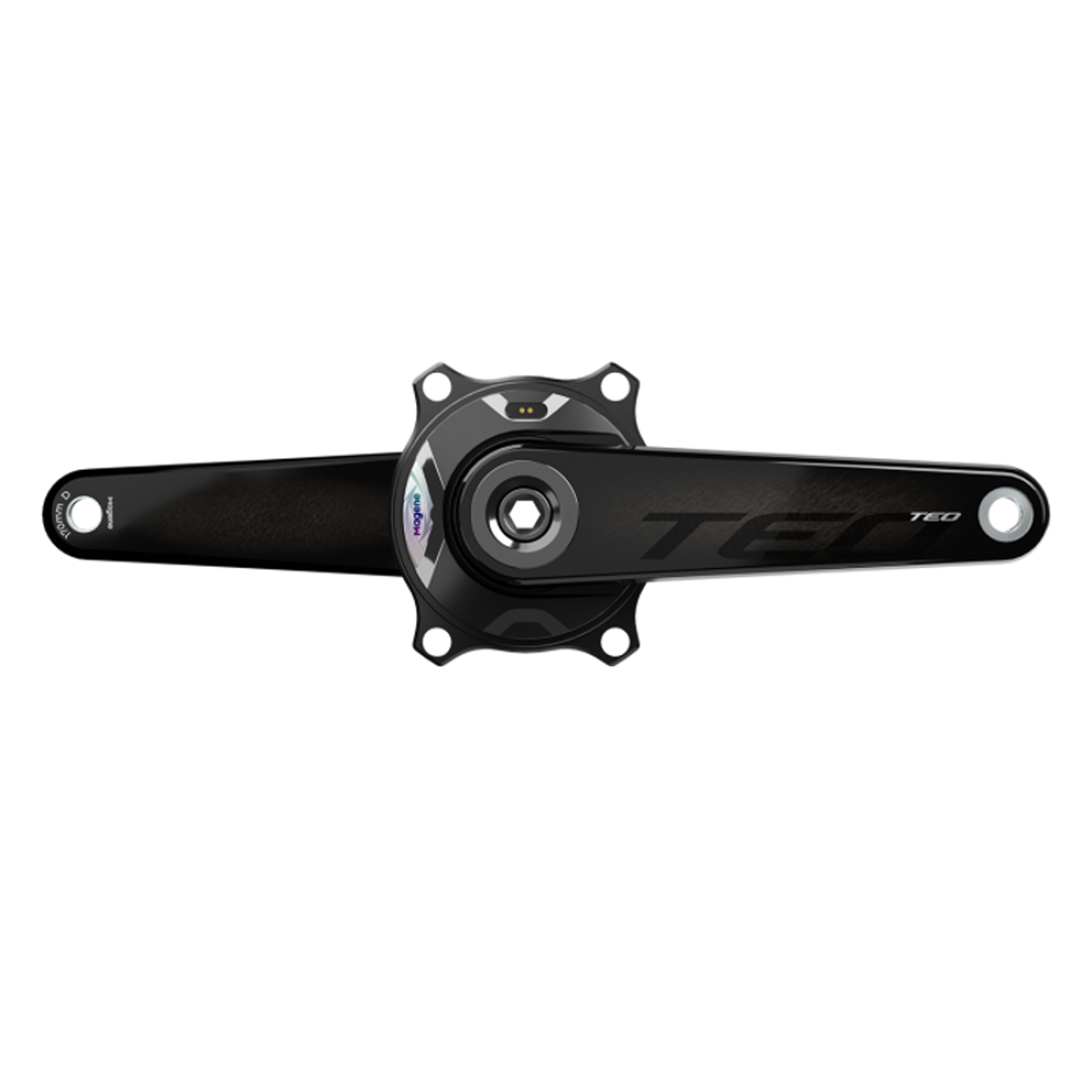

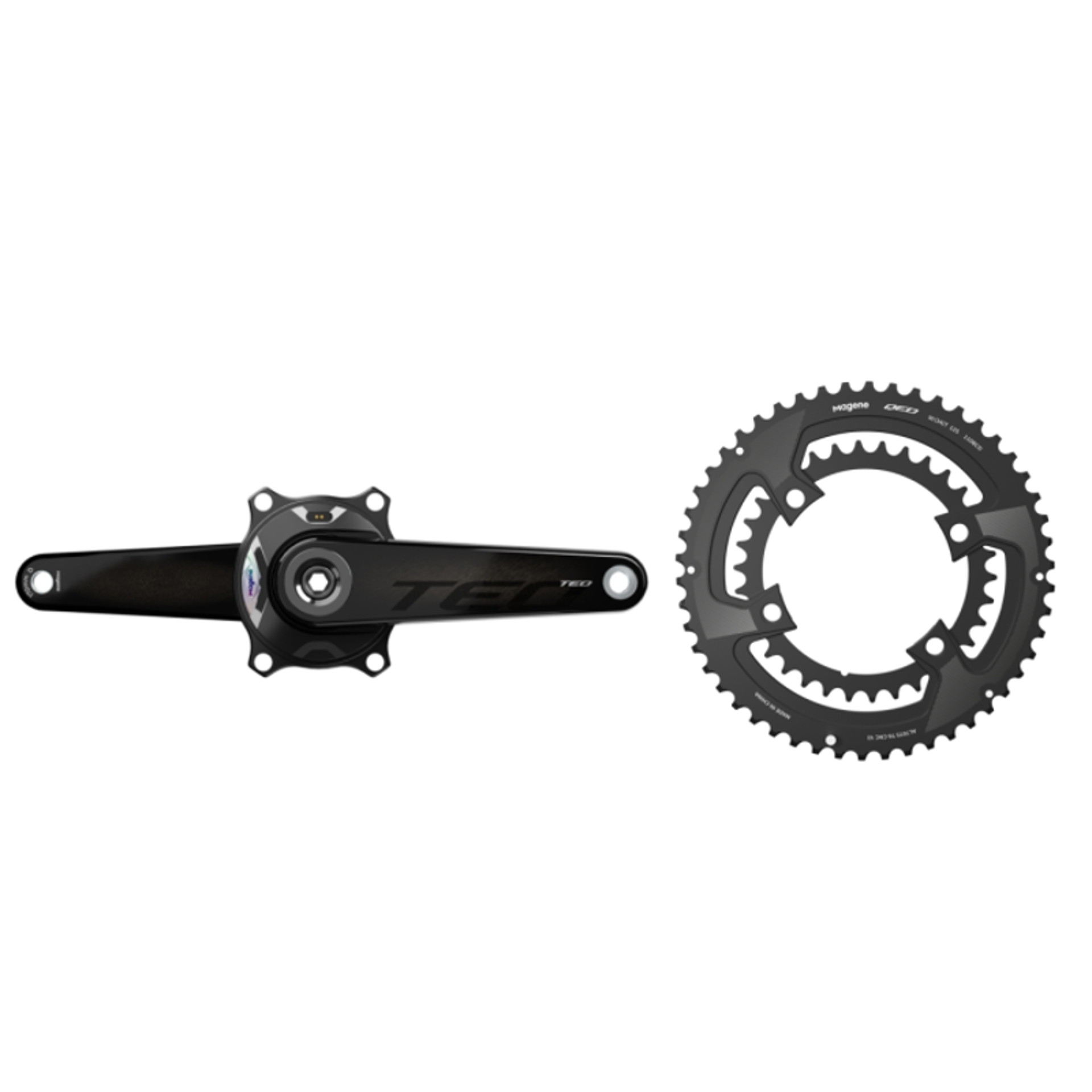

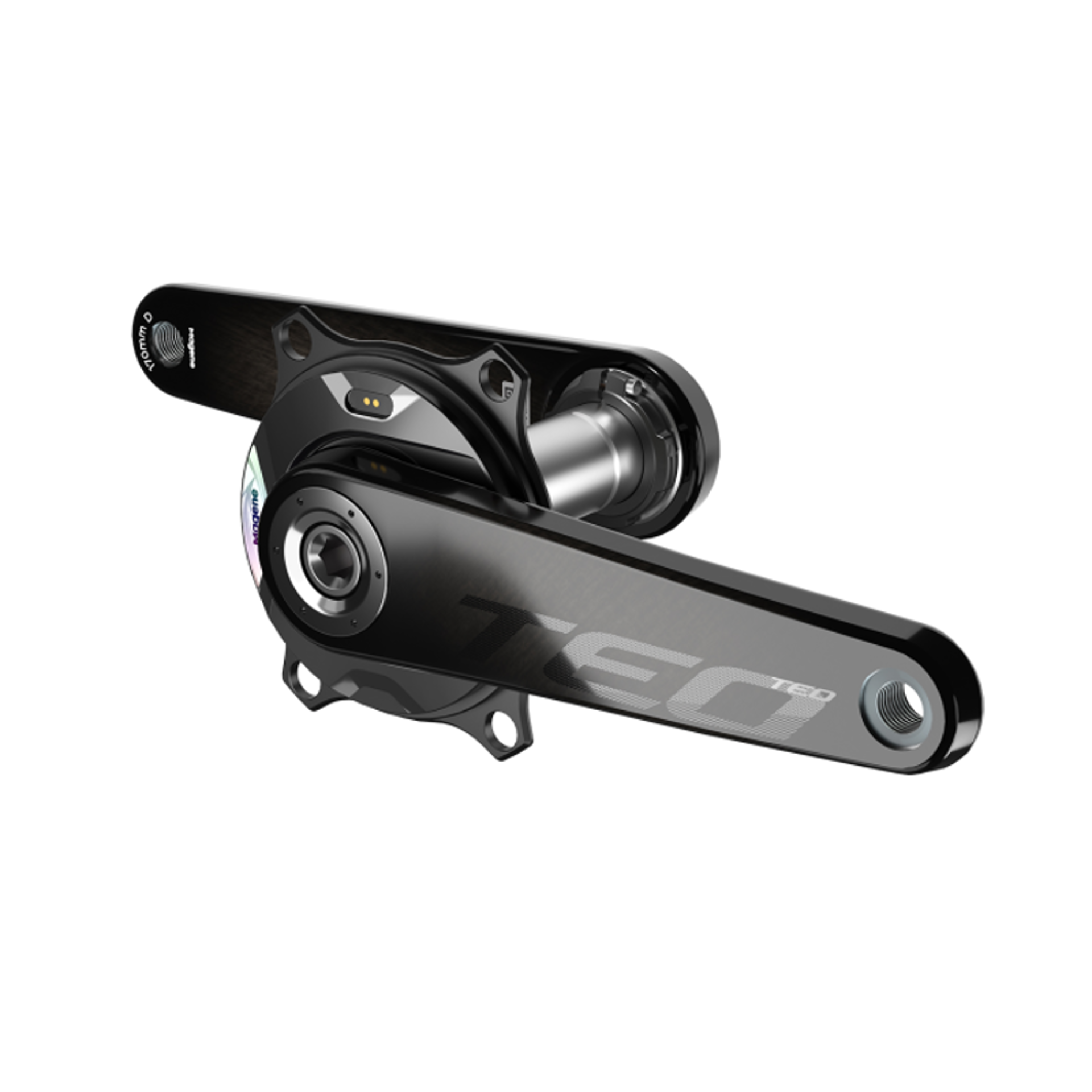

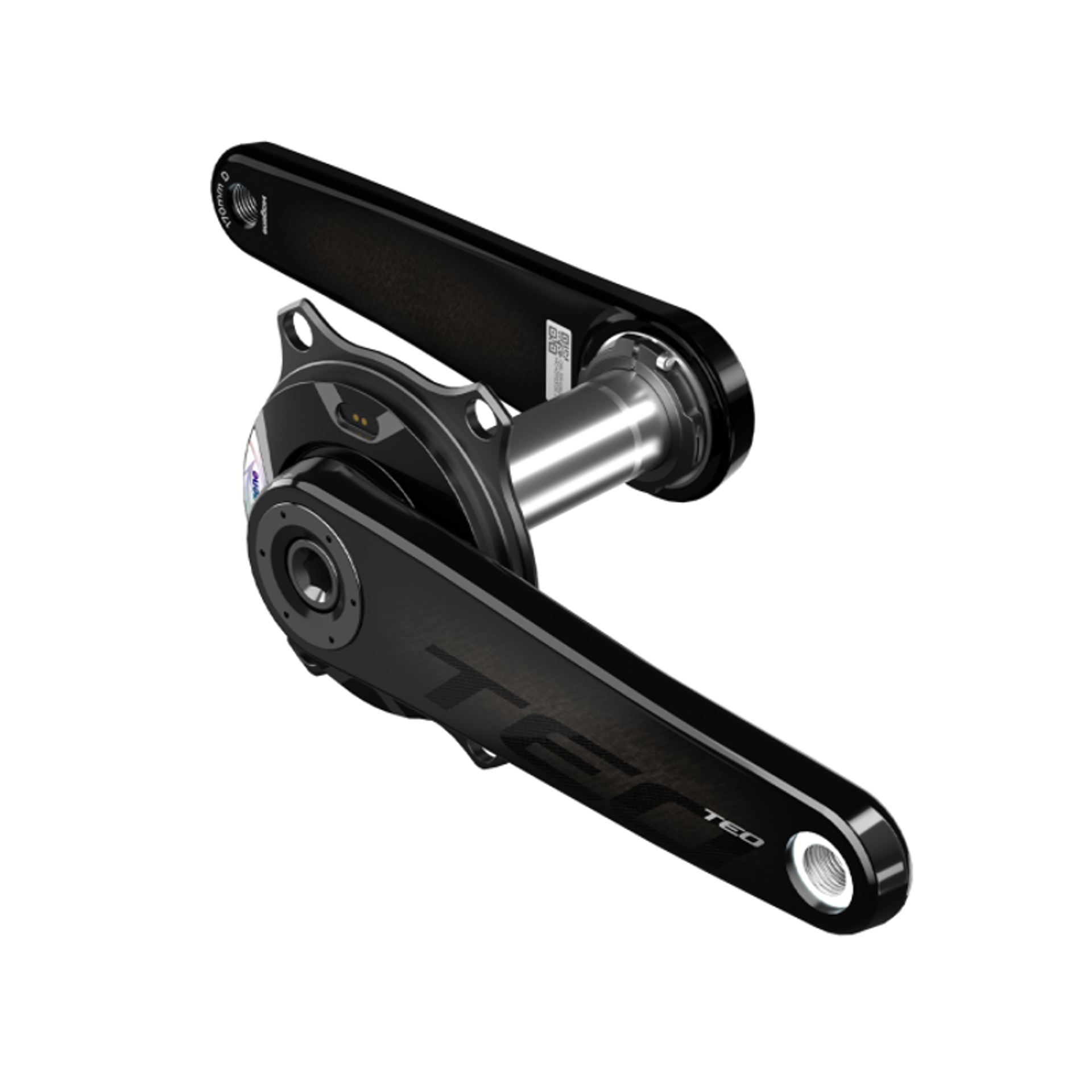

Magene TEO P515 Power Meter Chainset in Black

Brand:Magene

Code:17939BLK

The Magene TEO P515 Power Meter Chainset features a 425g lightweight carbon design and delivers ±1% power accuracy for professional-level performance.

Crafted from premium HI-MOD carbon fibre, the TEO carbon crank uses an innovative dual-channel high-pressure forming process to minimise weight while maintaining exceptional stiffness. The spider-based power meter is constructed from 7075 aircraft-grade aluminium, ensuring a lightweight build without compromising rigidity.

The system provides four essential cycling metrics: power, cadence, left/right balance, and pedalling smoothness, allowing for detailed analysis of technique and training efficiency. With a 29mm spindle, the design offers an exquisite balance of stiffness, weight, and durability. Equipped with intelligent temperature compensation algorithms, the power meter maintains ±1% accuracy in changing environments. It supports up to 380 hours of battery life and features Bluetooth and ANT+ connectivity for integration with major bike computers and training applications.

Features:

  • ±1% power accuracy using high-precision strain gauges and acceleration sensors.
  • 380-hour battery life for long-distance training and endurance rides.

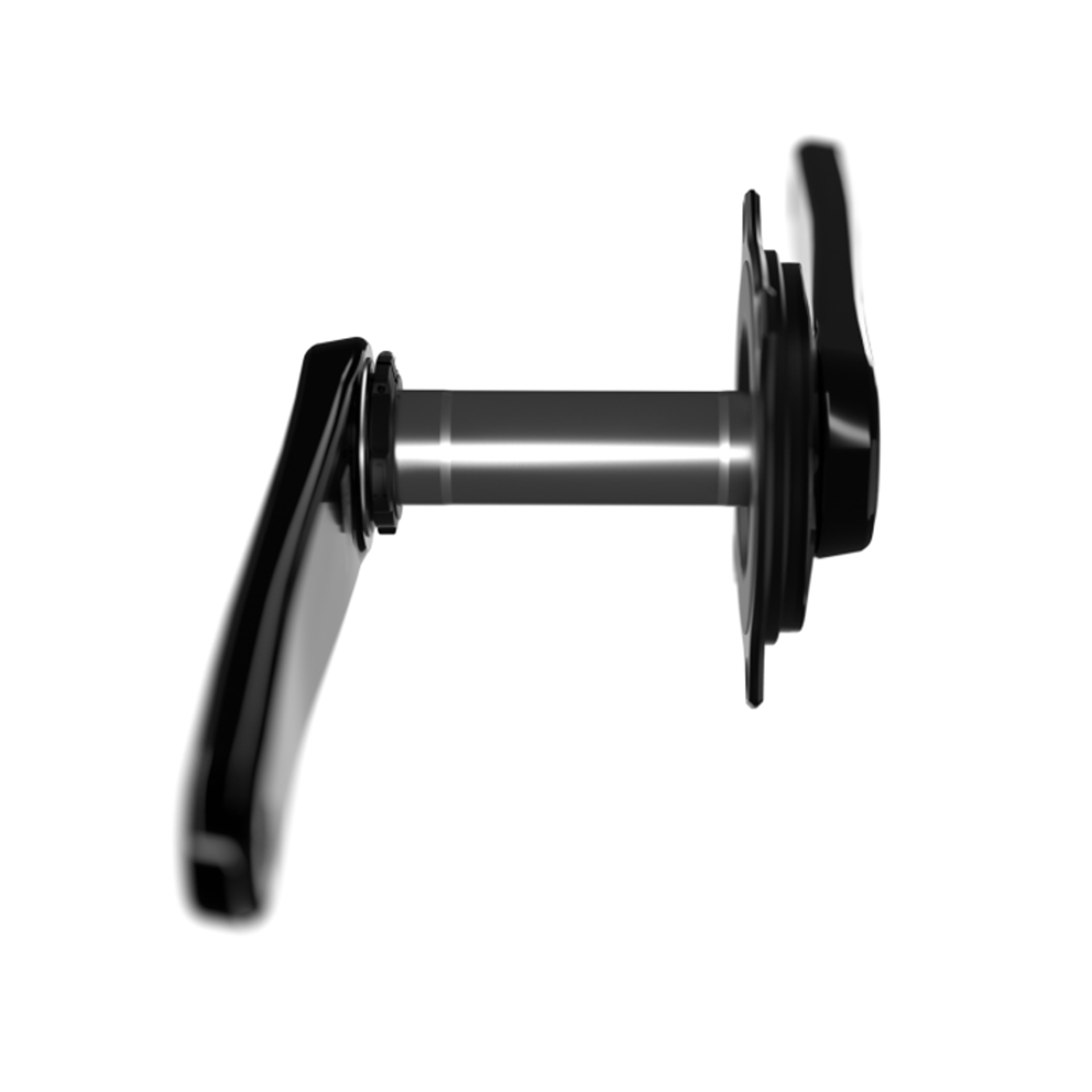

  • 29mm ultra-light aircraft-grade aluminium spindle.
  • 110 BCD 4-bolt compatibility.
  • Bluetooth and ANT+ connectivity for multi-device data recording.
  • IPX7 waterproof rating.
  • Compatible with large-diameter bottom brackets including T47 and BB386.
Technical Information
  • Weight
    425g±10g (170mm)
  • Crank length
    160mm, 165mm, 170mm, 172.5mm, 175mm
  • Material
    HI-MOD carbon fibre, 7075 aircraft-grade aluminium
  • Power accuracy
    ±1%
  • Spindle diameter
    29mm
  • Bolt specification
    4 bolts
  • BCD
    110mm
  • Chainline
    44.25mm
  • Q-factor
    148mm
  • Power range
    0~2500W
  • Cadence range
    20~240RPM
  • Data functions
    Power, cadence, left-right balance, pedalling smoothness
  • Calibration
    Automatic, backpedal, manual
  • Wireless protocols
    ANT+, Bluetooth
  • Waterproof grade
    IPX7
  • Working temperature
    -20~50℃
  • Battery life
    380 hours
  • Charging method
    Magnetic charging
  • Battery capacity
    145mAh
  • Bottom bracket compatibility
    T47, BB386
  • Bottom bracket shell width
    90.5-92mm
  • Driving side external diameter
    ≤57mm
